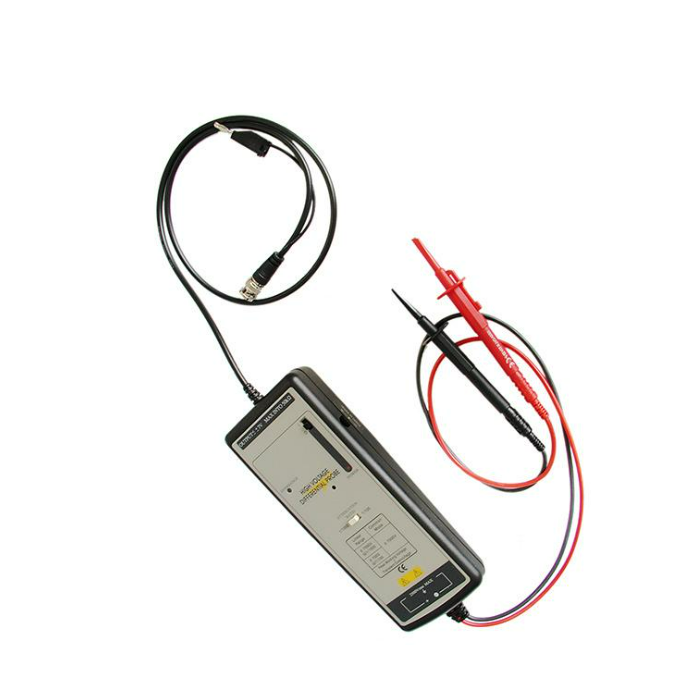

TPI ADF25C Differential Oscilloscope Probes (70 MHz)

Bandwidth: DC -70 MHz (-3dB)

Accuracy: ± 2%

Risetime: 14nS

CMRR @ 50Hz: -80dB

CMRR @ 20kHz: -60dB

CMRR @ 200kHz: -50dB

Input Impedance: 10M/10pf each side to ground 20M/5pF between inputs

Input Voltage: ±700V DC Inc.Pk AC @ 100:1 or 400V RMS

Maximum differential: ± 7,000VDC Inc. Pk AC 1,000:1 or 5,000V RMS

Output voltage: ± 7V minimum 2KΩ load

Offset: <± 5mV -10° C to + 40° C

Common mode: ± 7,000V DC Inc. Pk AC or 2,500V RMS

Noise: 0.9mV RMS

Output Source Impedance: 50Ω

Input Leads: 60 cm double insulated Rubber
