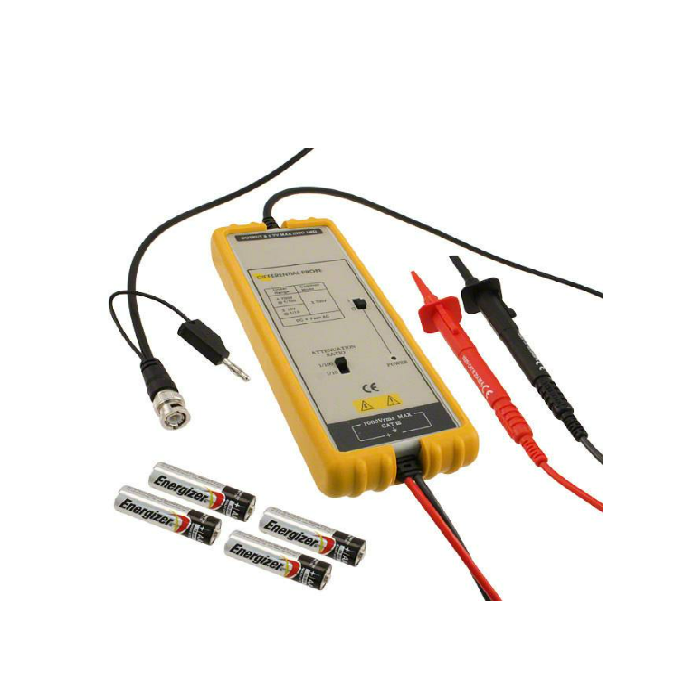

TPI ADF25 Differential Oscilloscope Probes (25 MHz)

Bandwidth: DC -25 MHz (-3dB)

Accuracy: ± 2%

Risetime: 14nS

CMRR @ 50Hz: -80dB

CMRR @ 20kHz: -60dB

CMRR @ 200kHz: -50dB

Input Impedance: 4M/10pf each side to ground 8M/5pF between inputs

Input Voltage: ±140V DC Inc.Pk AC @ 20:1 or 100V RMS

Maximum differential: ± 1,400VDC Inc. Pk AC 200:1 or 1,000V RMS

Output voltage: ± 7V minimum 2KΩ load

Offset: <± 5mV -10° C to + 40° C

Common mode: ± 1,400V DC Inc. Pk AC or 1,000V RMS

Noise: 0.7mV RMS

Output Source Impedance: 1Ω @ 1kHz. 8Ω @1 MH

Input Leads: 45 cm double insulated PVC
