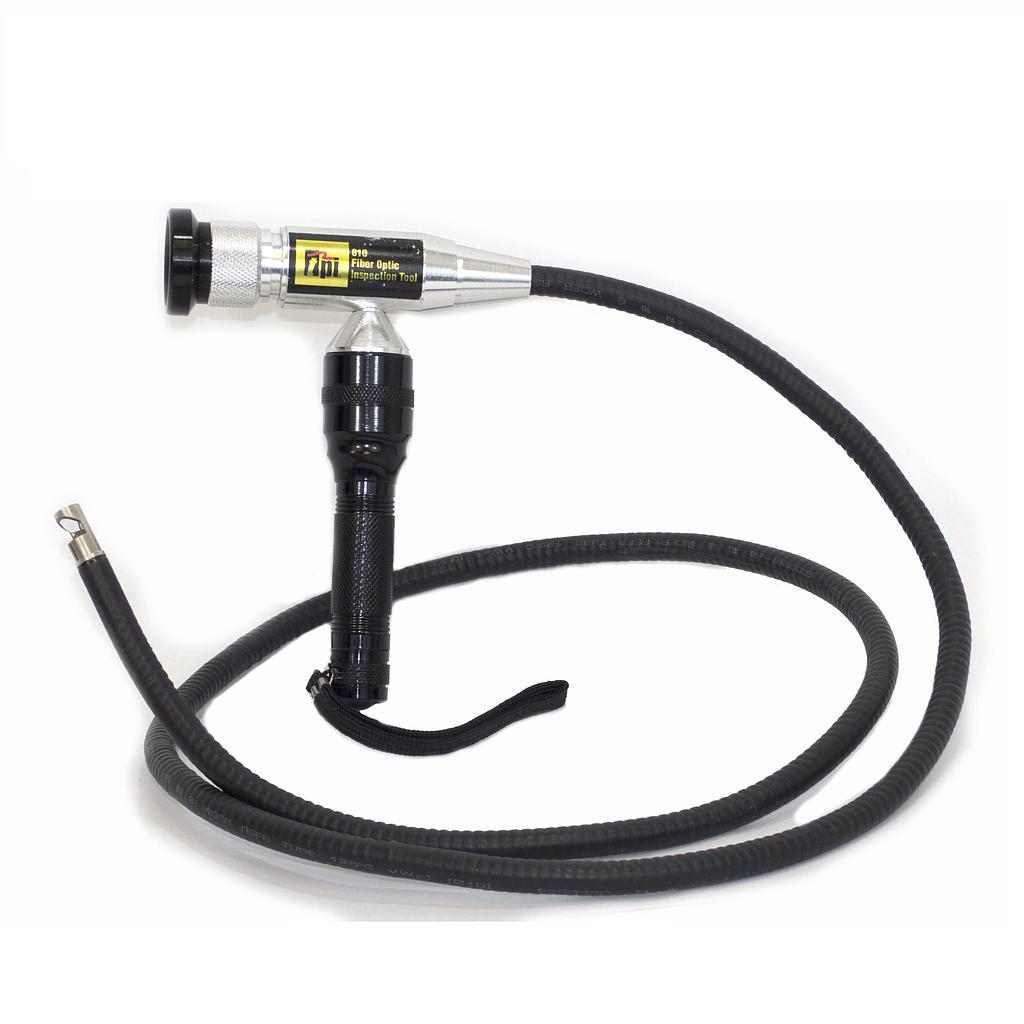

TPI 810 Fiber Optic Inspection Tool

Optical system

Pixels: 8000

Field of view: 45°

Depth of observation: 1 in to 6 in (25mm to 150mm)

Tip diameter: 0.26” (6.6mm)

Side View Adapter

Pixels: 8,000

Viewing angle: 90°

Field of view: 45°

Depth of observation: 1 in to 6 in (25mm to 150mm)

Tip diameter 0.35” (9mm)

Minimum focus distance: 1” (25mm)

Maximum bend radius/td>: 4” (100mm)

Shaft diameter: 0.39” in (1.0mm)

Working length: 48” (1,220mm)

Overall length: 52” (1,320mm)

Net weight: 0.79 lb (360g)

Operating temperature: 50°F to 140°F (10° to 60°C)
