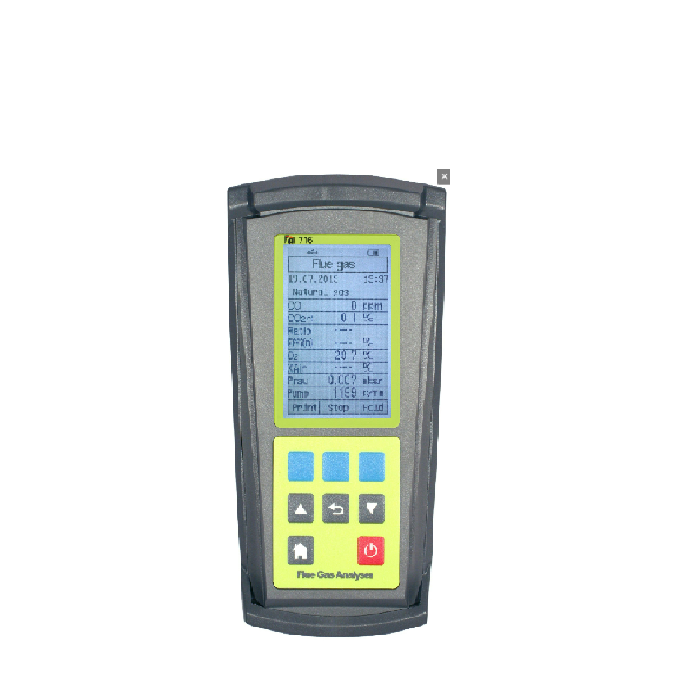

TPI 716 Combustion Analyzer

Operating Temperature Range: 14°F to +122°F (-10°C to +50°C)

Battery / Batery Life: Rechargeable Ni-MH / > 6 Hours

Charger Input Voltage: 115V or 230V: 50/60 Hz AC

Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse

Pressure Ranges: mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O

Display: Backlit Graphic LCD

Data Storage: 100 sets of readings, multiple pages

Time and Date: 24-Hour Real-Time Clock

Dimensions: 7.8” (200mm) x 3.5” (90mm) x 2.4” (60mm)

Oxygen

Range: 0-25%

Resolution: 0.1%

Accuracy: +/- 0.3%

Carbon Monoxide (low)

Range: 0-10000ppm

Resolution: 1ppm

Accuracy: (<100ppm) +/- 5 ppm; (>=100ppm) +/- 5%

Carbon Monoxide (high)

Range: 0-100000ppm

Resolution: 0.001%

Accuracy: >10000ppm) +/- 10%

Carbon Dioxide

Range: 0-25%

Resolution: 0.1%

CO/CO2 Ratio

Range: 0-0.999

Resolution: 0.001

Combustion Efficiency

Range: 0-100%

Resolution: 0.1%

Pressure Measurement

Selectable Ranges: mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O

Range: -100 mbar to + 100 mbar

-10 kPa to + 10 kPa

-40 inH2O to 40 inH2O

Resolution: 0.001 mbar (0~9.999 mbar)

0.01 mbar (10.00~99.99 mbar)

Accuracy: < 5 mbar: +/- 0.05 mbar

> 5 mbar: +/- 1% of reading

Temperature Measurement

Input Type: K-Type thermocouple

Range: -58°F to 2372°F (-50°C to 1300°C)*

Resolution: 1°F (1°C)

Accuracy: +/- (0.3% of rdg + 2°F) or +/- (0.3% of rdg + 1°C)
