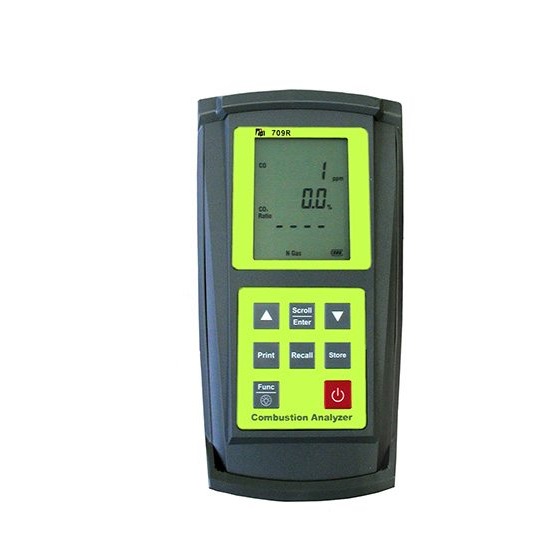

TPI 709R Combustion Analyzer

Operating Temperature Range: 14°F to +122°F (-10°C to +50°C)

Battery / Batery Life: Rechargeable Ni-MH / > 6 Hours

Charger Input Voltage: 115V or 230V : 50/60 Hz AC

Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse

Pressure Ranges: mbar, kPa & inH2O

Display: Backlit Graphic LCD

Data Storage: 50 sets of readings, multiple pages

Time and Date: 24 Hour Real Time Clock

Dimensions: 7.8” (200mm) x 3.5” (90mm) x 2.4” (60mm)

Oxygen

Range: 0-25%

Resolution: 0.1%

Accuracy: +/- 0.3%

Carbon Monoxide

Range: 0-10000ppm

Resolution: 1ppm

Accuracy: (<20ppm) +/- 3 ppm; (>=100ppm) +/- 5%

Carbon Dioxide

Range: 0-25%

Resolution: 0.1%

Co/CO2 Ratio

Range: 0-0.999

Resolution: 0.001

Accuracy: +/- 0.3%

Combustion Efficiency

Range: 0-100%

Resolution: 0.1%

Pressure Measurement

Selectable Ranges: mbar, kPa and inH2O

Range: - 150 mbar to + 150 mbar

Resolution: 0.01 mbar & 0.1 mbar
