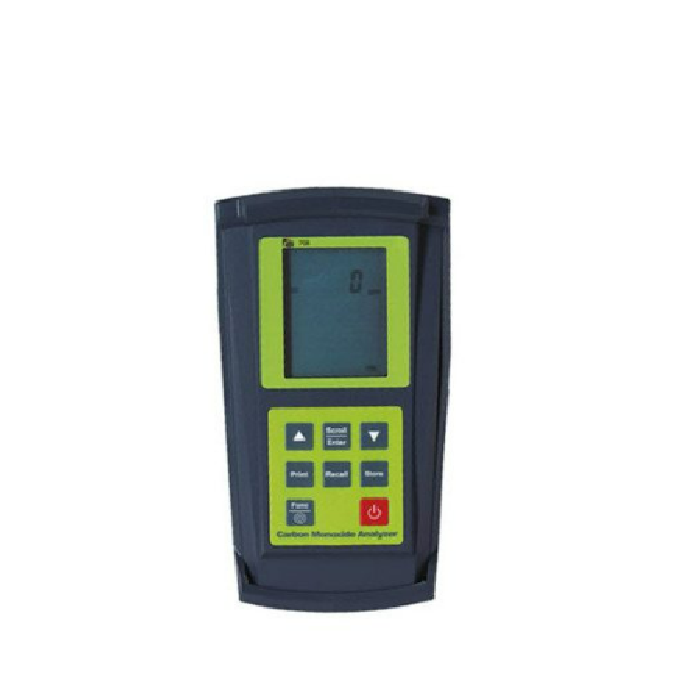

TPI 708 Combustion Analyzer

Carbon Monoxide (CO) Measurement

Range: 0 to 10,000 ppm

Resolution: 1 ppm

Accuracy: +/-5ppm or 5% of reading whichever is greater

Oxygen (02) Measurement

Range: 0 to 25%

Resolution: 0.1%

Accuracy: ±0.3%

Carbon Dioxide (CO2)

Range: 0 to 25%

Resolution: 0.1%

Temperature Measurement

Range: -40 to 1472°F, or -40 to 800°C

Resolution: 1°F or °C

Accuracy (K-type) ±0.3%, ±2°F or ±1°C

Draft/Pressure Measurement

Selectable Ranges: mBar,kPa, and inH2O

Ranges: -150 mBar to +150 mBar; -15 kPa to +15 kPa; -60 inH2O to +60 in H20

Resolution: 0.001 inH2O

Accuracy: ±0/5% fsd

CO/CO2 Ratio

Range: 0 to 0.999

Resolution: 0.001

Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Battery Type: 1.5V AA (3)

Selectable Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse

Display Type: Backlit 3 line LCD

Data Storage: 50 Locations

Print Capability: Yes, via optional IR printer (A740)

Date and Time Function: 24 Hour Real Time Clock

Dimensions: 200mm x 90mm x 60mm

Weight: 500g
