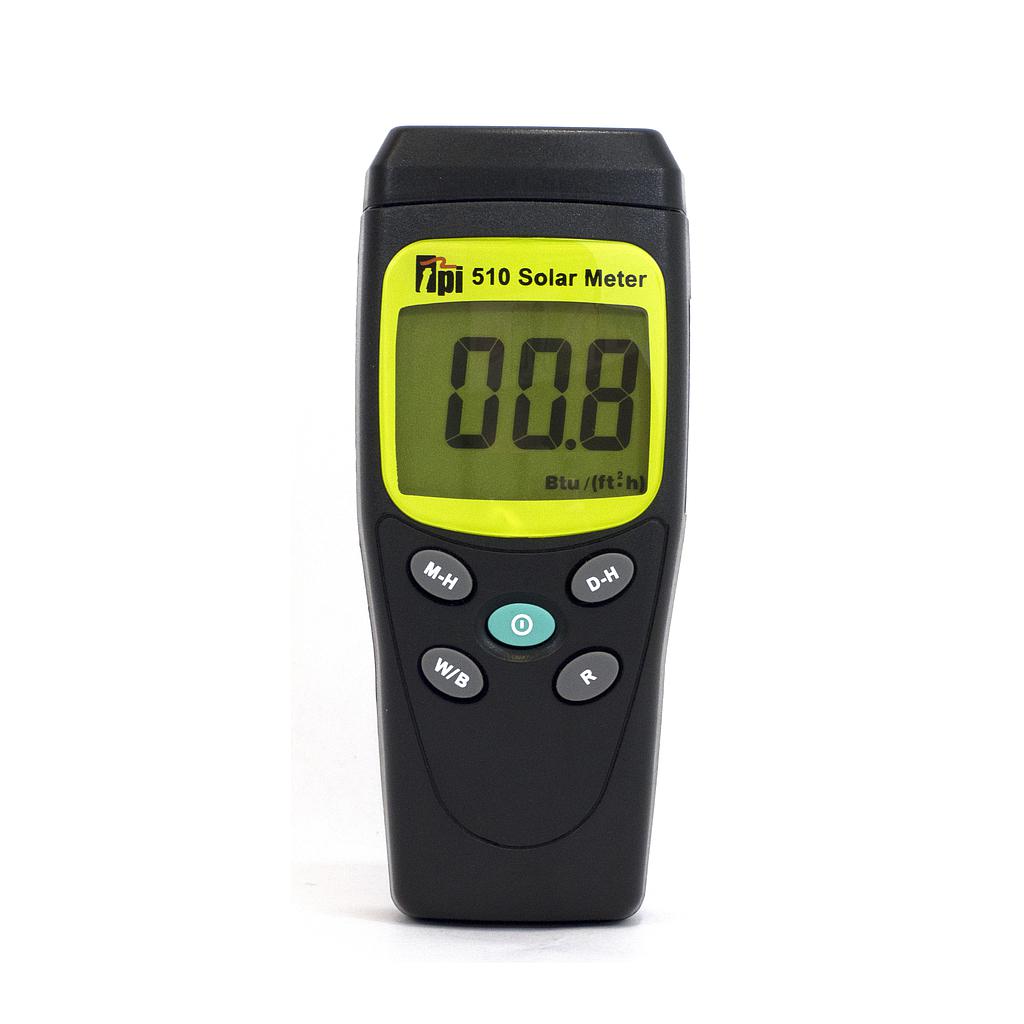

TPI 510 Solar Irradiance Meter (1999W/m2)

Range: 1999W/m2 / 634BTU/(ft2*h)

Accuracy: Typically within ±10W/m2[±3BTU/(ft2*h)] or ±5%, whichever is greater in sunlight;

Display: 3-1/2 digits LCD with maximum reading 1999

Sampling Time: Approx. 0.25 second

Resolution: 0.1W/m2 / 0.1BTU/(ft2*h)

Over-Input: Display shows" OL".

Operating Temp. & RH: 41°F~104°F (5°C~40°C), below 80%RH.

Storage Temp. & RH: 14°F~140°F (-10°C~60°C), below 70% RH

Dimensions & Weight:5.1 x 2.4 x 1.5” 5.3oz (132 x 60 x38 mm, approx. 150g)

Accessories:

• User Manual

• A9V battery (NEDA 1604 IEC 6F 22 JIS 006P)*1

• Carrying Case

Datasheet

Manual
