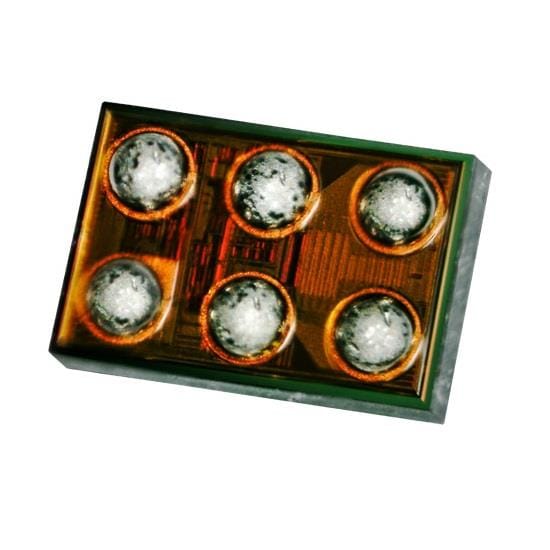

Toshiba TCR15AGADJ,LF LDO Voltage Regulators 1500mA LDO, Vout=0.6 to 3.6V, Dropout=120mV, Iq=25uA, PSRR=95dB, in WCSP6F package

Polarity: Positive

Output Type: Adjustable

Unit Weight: 0.610 mg

Mounting Style: SMD/SMT

Output Current: 1.5 A

Output Voltage: 600 mV to 3.6 V

Dropout Voltage: 120 mV

Load Regulation: 3 mV

Number of Outputs: 1 Output

Quiescent Current: 25 uA

Input Voltage - Max: 6 V

Input Voltage - Min: 600 mV

Output Voltage Range: 600 mV to 3.6 V

Dropout Voltage - Max: 216 mV

Pd - Power Dissipation: 1.35 W

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 95 dB
