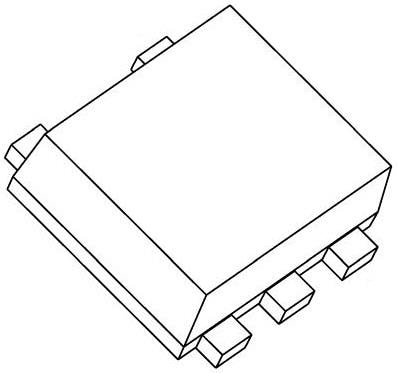

Toshiba TC75S63TU,LF Operational Amplifiers Low Noise Op-amp

Shutdown: No Shutdown

Topology: Single

Input Type: Differential

Technology: CMOS

Unit Weight: 7 mg

Amplifier Type: Low Noise

Mounting Style: SMD/SMT

SR - Slew Rate: 1 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.2 V

Ib - Input Bias Current: 1 pA

Operating Supply Current: 500 uA

Vcm - Common Mode Voltage: 0 V to 2.4 V

Ios - Input Offset Current: 1 pA

Output Current per Channel: 1.5 mA

Vos - Input Offset Voltage: 1 mV

Maximum Dual Supply Voltage: +/- 2.75 V

Minimum Dual Supply Voltage: +/- 1.1 V

GBP - Gain Bandwidth Product: 3.5 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 7.8 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 80 dB

PSRR - Power Supply Rejection Ratio: 80 dB
