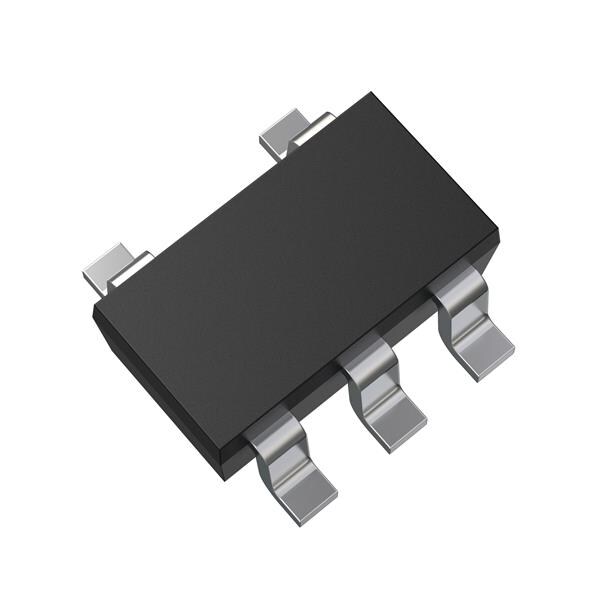

Toshiba TC75S103F,LF(CT Operational Amplifiers Single Operational Amplifier Ultra-Low supply current: 100uAa.1.8V V: 1.8V-5.5V Io:+/-25mA
ManufacturerToshiba(View more products from this manufacturer)
ModelTC75S103F,LF(CT
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Shutdown: No Shutdown
Mounting Style: SMD/SMT
SR - Slew Rate: 520 mV/us
Number of Channels: 1 Channel
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 1.8 V
Ib - Input Bias Current: 1 pA
Operating Supply Current: 115 uA
Ios - Input Offset Current: 1 pA
Output Current per Channel: 17 mA
Vos - Input Offset Voltage: 1.5 mV
GBP - Gain Bandwidth Product: 300 kHz
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
CMRR - Common Mode Rejection Ratio: 90 dB
