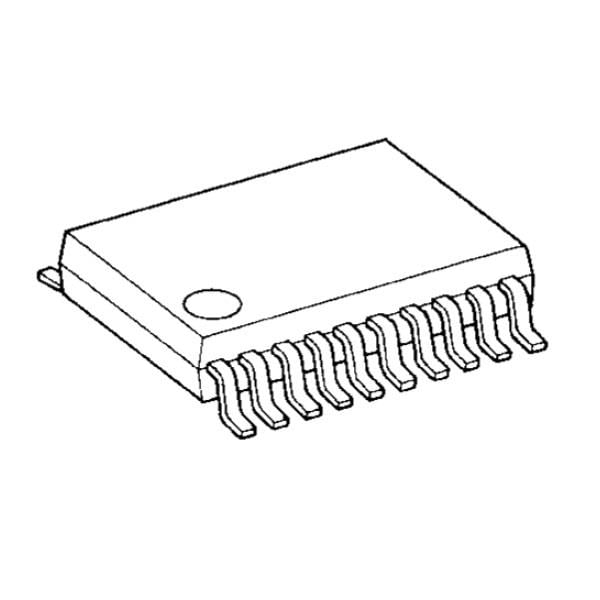

Toshiba TBD62387AFNG,EL Low-Side DMOS Transistor Array 8-CH 50V 0.5A

Shutdown: No Shutdown

Logic Type: CMOS

Technology: Si

Unit Weight: 100 mg

Configuration: Inverting

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 50 V

Number of Drivers: 8 Driver

Number of Outputs: 8 Output

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Pd - Power Dissipation: 960 mW

Operating Supply Current: 60 uA

Maximum Turn-On Delay Time: 0.6 us

Maximum Turn-Off Delay Time: 0.6 us

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 3.25 Ohms
