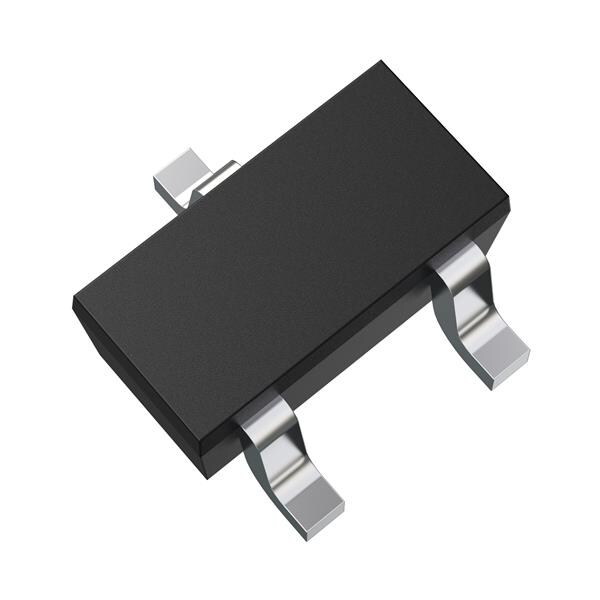

Toshiba SSM3K72KFS,LXHF MOSFETs AUTO AEC-Q Low Rdson SS MOS N-ch Logic-Level Gate Drive VDSS:60V Ic:0.3A SOT-416

Fall Time: 17 ns

Rise Time: 3.6 ns

Technology: Si

Channel Mode: Enhancement

Configuration: Single

Qualification: AEC-Q101

Mounting Style: SMD/SMT

Qg - Gate Charge: 390 pC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 500 mW

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 5.5 ns

Typical Turn-Off Delay Time: 38 ns

Id - Continuous Drain Current: 300 mA

Maximum Operating Temperature: + 150 C

Rds On - Drain-Source Resistance: 1.65 Ohms

Vds - Drain-Source Breakdown Voltage: 60 V

Vgs th - Gate-Source Threshold Voltage: 2.1 V
