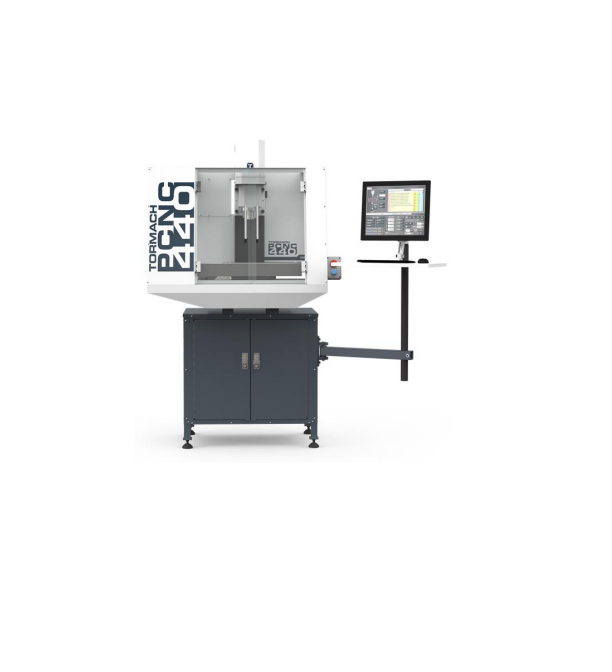

Tormach PCNC 440 CNC Milling Machine

Travels:

X-Axis: 10 in. (254 mm)

Y-Axis: 6.25 in. (159 mm)

Z-Axis: 10 in. (254 mm)

Spindle

Spindle Power: 0.75 hp (0.56 kW)

Maximum Speed: 10,000 RPM

Transmission: Poly-V Belt

Spindle Taper: R8

Threading: Thread Mill

Maximum Feed Rate

X- and Y-Axis: 135 IPM (3.43 m/min)

Z-Axis: 110 IPM (2.79 m/min)

Axis Motor: Stepper Driven

Power

Power Required: Single-Phase 115 Vac, 50/60 Hz, 15A breaker

Machine Specifications

Table Size: 18 in. × 6.3 in. (457 mm × 160 mm)

Table Slots: 3/8 in. (9.5 mm)(three slots)

Spindle Note to Table Max Clearance: 12 in. (305 mm)

Spindle Centerline to Machine Column: 6.5 in. (165 mm)

Machine Size: 42 in. × 36 in. (1.1m × 0.8 m)

Overall System Height: 70 in. (1.8 m)

Typical System Weight: 600 lb. (272 kg)
