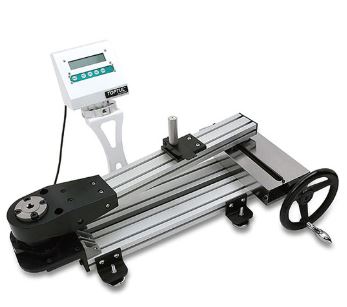

TOPTUL IEA040400 Professional Grade Torque Tester (Calibrator)

TECHNICAL SPECIFICATION

Calibration Range

40~400 Nm

Display

5 alphanumeric digits max.

Accuracy

±0.5%

Units of Measurement

Nm, Ft-Lb, In-Lb, Kg-cm

Operating Temperature

+5°C~+40°C

Storage Temperature

0°C~+50°C

Operating Humidity

25~85 % RH

Power Supply

90~260 V.A.C. at 50/60 Hz.

Power Consumption

Less than 1.5 Watt

Power Cable

1.8 Meter

Base Material

Anodized Aluminum Alloy

Dimension

850(L)x650(W)x450(H) mm

PC Connection

RS 232

Net Weight

38.2Kg

(*Includes 3 Test Drive Adapter: 3/8", 1/2" & 3/4" S.Q. Drive)
