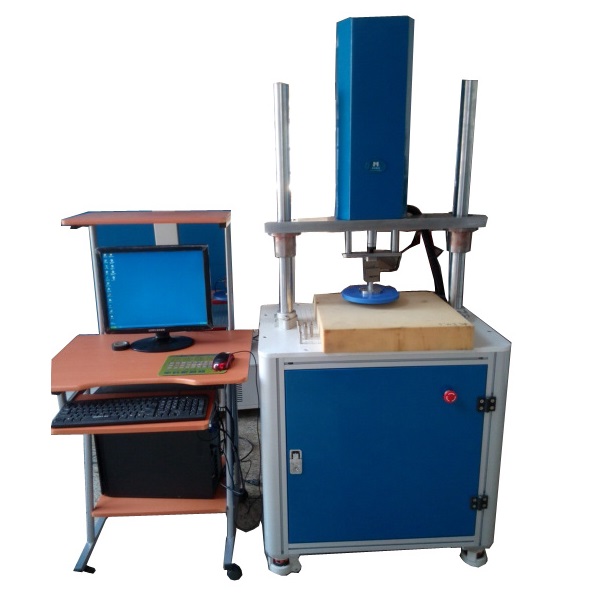

TONYHK TNJ-012 Foam Indentation Force Deflection Tester

Technical parameters:

Automatic stop, stroke top and bottom limitation

Sensing method: Force sensor automatic dispaly

Load Cell Capacity: 300Kg

Motor: servo motor control system

Unit switch: Kg, N, Lb

Resolution: 1/1000

Accuracy: ±0.5%

Testing stroke: 200mm

Test speed: 25~380mm/min

Size of upper compressing plate: diameter 203mm,

Bottom Border-radius: R1mm

Lower platform: 420mmx420mm，

Air hole diameter: 6.5mm,

Hole center gap: 20mm

Specimen size: (380+10)mmx(380+10)mmx(50±3)mm

Volume (WxDxH): 70x42x70cm

Weight: approx 70kg

Power: 1∮ AC220V 2.6A
