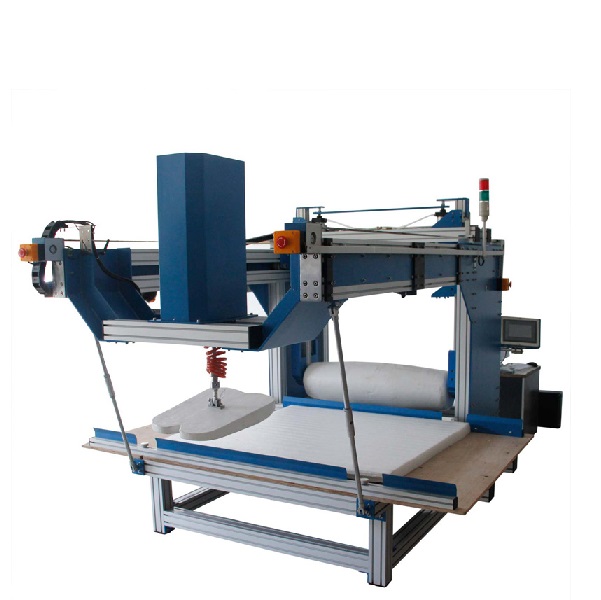

TONYHK TNJ-007 Mattress Durability Comprehensive Tester

Rolling test stroke: The mattress mid-line left and right are both 500 mm.

Rolling test speed: 16±2 cycle per minute

Roller: 1400N, The middle diameter:300mm, Both ends diameter:250mm, length:1000mm

Counter: 0~999999can be set.

The control way of rolling: Touch screen + PLC control

Loading cushion on the edge: buttocks shape, 380mmx495mm

Loading parts on the edge: The midpoint on the long edge of the mattress.200 mm from edge.

Loading force on the edge: 1000N

Loading time on the edge: 3S

Position of measurement: Mattress center, Left and right are both 250mm, the midpoint on the long edge of the mattress 200 mm inward.

Loading plate of measurement:

- Diameter: 355mm

- Radius of curvature of the end: R800mm

Capacity of force sensor: 2kN

Loading speed of measurement: 90±5mm/min

Stroke: 500mm

Drive motor: Servo motor

Standards:

QB/T 1952.2-2011
