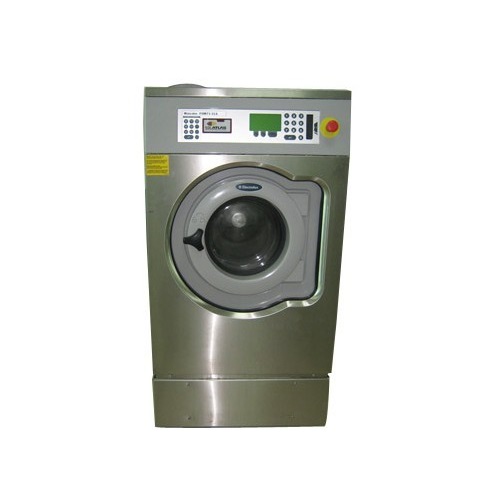

TONYHK TF-017 Lab Washer-Extractor/Wascator

Water temperature: cold 15±2°C, hot 60±2°C

Water gage: 240±50 Kpa

Water control accuracy: +/-0.2 L/pool

Water level control accuracy: +/-0.8 L/pool

Inside rotary drum diameter: 520±1mm

Inside rotary drum depth: 315±1mm

Inside rotary drum volume: 61L

Outer rotary drum diameter: 554mm

Outer rotary drum ponding: 1800±25ml

Outer rotary drum material: stainless steel 2333

Dimension: 660×630×1070mm(W*D*H)

Weight: 123kg/270lb

Standard: BS EN 25077/26330, IWSTM 31, IEC 456, ISO 5077/6330

M&S P1, P1A, P3A, P12, P91, P99, P99A, P134
