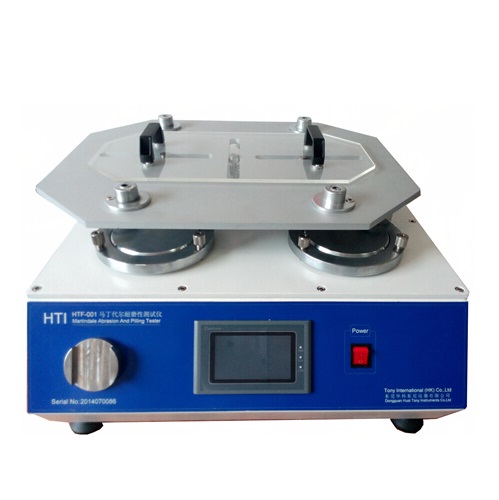

TONYHK HTF-001 Martindale Abrasion and Pilling Tester

Specimen holder: 4 position, 6 position, or 8 position(selectable).

Accumulate count: 999.999

Max stroke:

- Horizontal 60.5±0.5mm;

- Vertical 24±0.5mm

Pressurized material weight:

(a) wear resistance test: Clamps component 200±1g(1.96N), cloth sample hammer 395 ± 2g, furniture decorations specimen hammer 594±2g.

(b) pilling test: gripper assembly 155±1g, heavy punch 260±1g

Effective friction diameter:

(a)Wear resistance test: φ 28.8mm(9KPa);

(b) Pilling performance test: φ90mm(12KPa)

Relative velocity: 50 rpm

Sample press hammer weight: 2385±10g

Dimensions (L x W x H): 885*640*370mm

Power supply: AC380V, 180W or AC220V, 180W

Weight: 140KG
