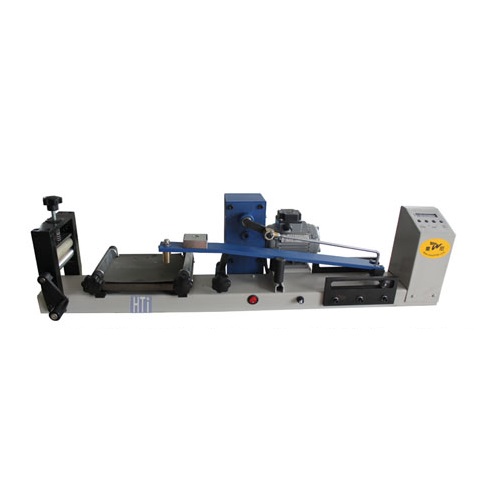

TONYHK HTC-002 AATCC Motor Driven Crockmeter (60 times/min, 9±0.8N)

Friction head Size:

- Round: Φ16mm

- Square: 19×25mm

Reciprocating friction and the number of first stroke: 100mm±1mm

Friction head downward pressure: 9±0.8N

Friction velocity: from one per second (60±3 beats/min)

Test bed mat material thickness: 1~1.5mm (thin white consumption)

Maximum size and thickness of the sample: 220×110×5mm

Crank rotation frequency: 60 times/min

Scrub head: Standard brush

Standard: JIS L0849,GB/T3920-2008,5712,420；ISO105-X12,D02,AATCC8/165

Weight: Net weight: 22KG, Gross weight: approx 30kg

Plywood box size: 91*33*29cm
