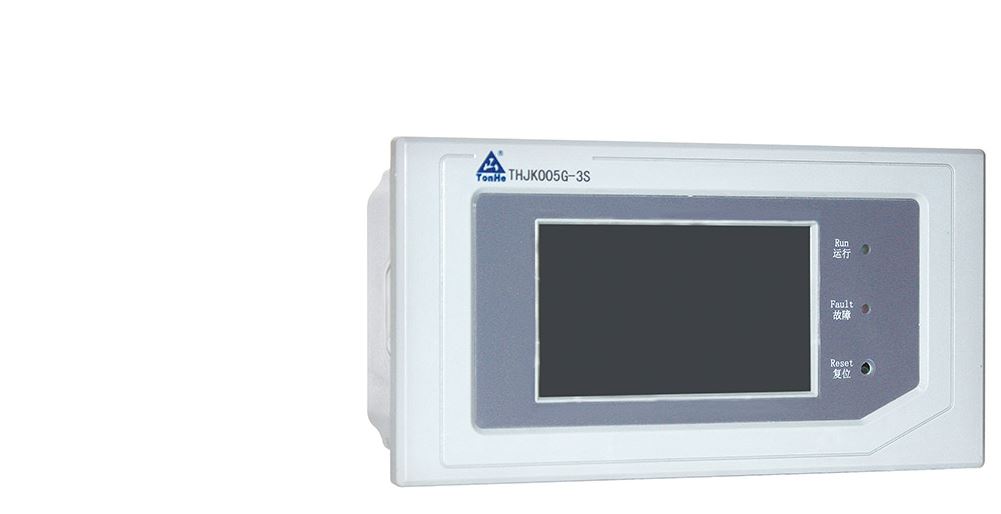

Tonhe THJK005G-3S Controller

Measurements: Measure AC input, DC output, BUS status, DI/DO, battery status and temperature, battery charging status
Functions:
-Information inquiry including DC info, battery info, insulation info, DI info, Alarms, running log;
-System control:switch ON/OFF charger, control charging status; System configuration and setting;
-Battery charging management;
-Alarms and setting ;
-Friendly user interface, full graphic display
Battery management feature:
-Battery charging current limit
-Automatic float and boost charge management
-Manual, auto and periodic boost charge
-Maximum boost charge protection
-Temperature Compensation
-Discharge and low voltage protection
-Battery capacity test
-Battery on-line test
Remote monitoring:
-Communication interface RS485
-Communciation protocol CDT or MODBUS (optional)
-Baud rate 2400, 4800, 9600 (optional)
-Check bit ODD, EVEN, NONE settable
-Communication address range 00~255
Connection and port:
-COM1: Rectifier, DC/DC converter
-COM2: RTU modules, UPS/INV
-CAN: Spare
-COM3: Spare
-COM4: PC program
-USB: Factory test interface
-Power input: 88-300VDC
Dimension (H/W/D): 110/210/73.5 mm
Operation temperature: - 5℃~+40℃
Storage temperature: - 10℃~+60℃
Humidity: ≤90%
