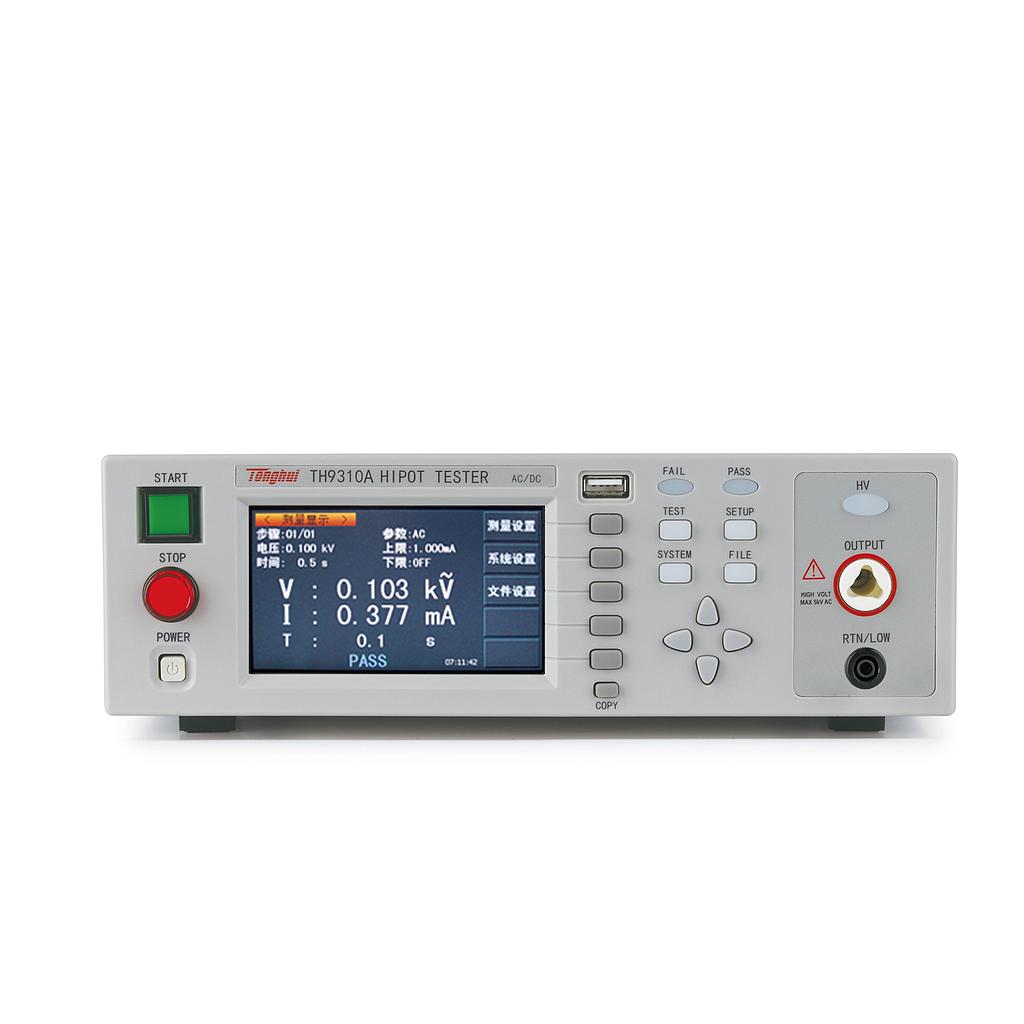

Tonghui TH9310A Hipot tester (AC: 0.05~5.00kV; DC: 0.05~6.00kV)

Withstanding Voltage Test

Output Voltage:

- AC: 0.05 —5.00kV ± (2% reading+5digits) , (50Hz、60Hz optional)

- DC: 0.05 —6.00kV ± (2% reading+5digits)

- Voltage Adjustment Rate: ≤ (1% - 5V)（rated power）

Current Test Range:

- AC: 0.000mA – 10.00mA ±(2% reading+2digits)

- DC: 0uA –50.00mA ±(2% reading+2digits)

- Discharge Function: Discharge after test ends（DCW）

Discharge Function: Discharge after test ends

Arc Detection

Measurement Range:

- AC: 1 – 9 levels （factory default 5）（20mA、18mA、16mA、14mA、12mA、10mA、7.7mA、5.5mA、2.8mA respectively）

- DC: 1 – 9 levels

General Specification:

Memory: 20 test files with each file can store 20 test steps

Voltage Rising Time: 0.1s – 999.9s

Test Time Setting（AC/DC）: 0.2s – 999.9s

Time Accuracy: ±(1%+0.1s)

Interface:

Standard: HANDLER, RS232, USBDRV(PC interface), USBHOST(USB port)
