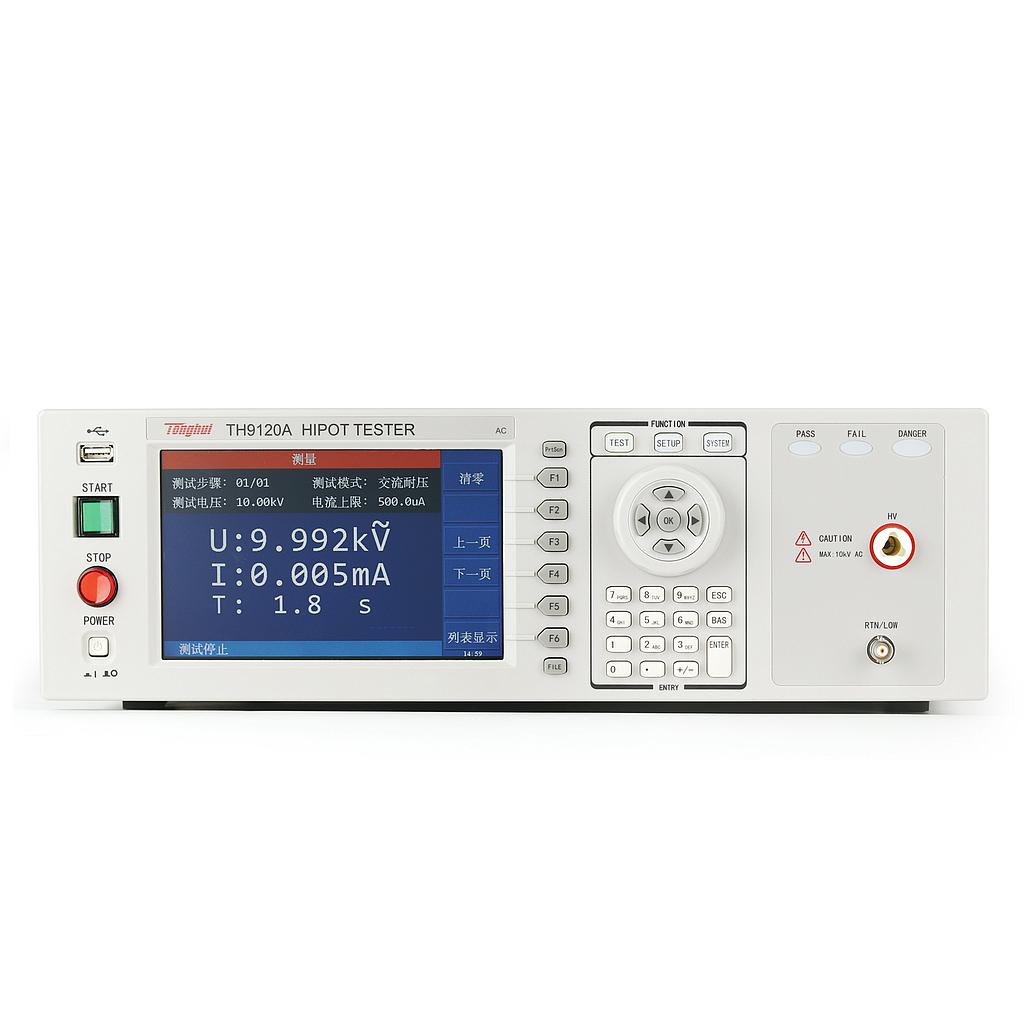

Tonghui TH9120A Hipot Tester (0.05-10.0kV)

Test Mode: AC/OSC

Withstand Voltage Test:

Output Voltage: AC:

- Voltage Range: 0.05-10.0kV

- Voltage Waveform: 50/60Hz ±0.1% Sine wave

- Output Power: 200VA(10.0kV 20mA)

Load Change Rate: ±(1% set value + 10V) (rated power)

Voltage Resolution: 2V

Voltage Accuracy: ± (1% set value + 0.1% full scale)

Current Test Range: AC:

- Current Range: 0.001mA-20mA

- Current Resolution: 0.001mA

- Current Accuracy: 0.100mA-2.999mA±(1% reading + 0.5% full scale); 3.00mA-20.00 mA±(1.5% reading 0.5% full scale)

Maximum Short Circuit Current: 40mA (AC test only)
