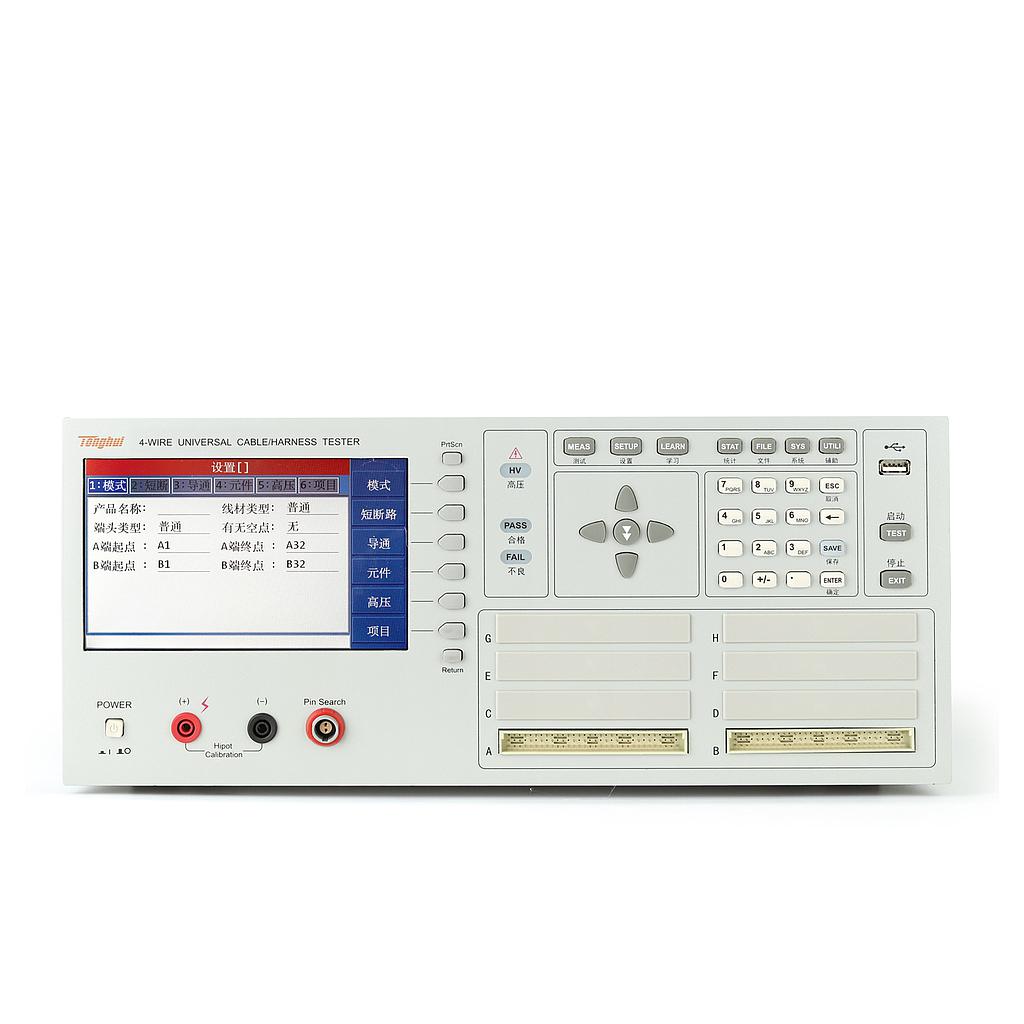

Tonghui TH8602-1 Cable/harness Tester (64 Pin)

Test Pin: 64

Passive Component:

- Signal Source: 50Hz — 300kHz, 1Vrms

- Capacitance Test: 1pF — 1000μF

- DCR: 5mΩ — 10MΩ

Conductance/Transient Conduct: 5mΩ — 950Ω

DC Withstand Voltage: Voltage: 5V — 1000V, Current: 1μA — 11.5mA.

AC Withstand Voltage: Voltage: 50V — 750V, Current: 0.01mA — 11.5mA.

ARC Detection: Level 8

Insulation Resistance: Voltage: 5V — 1000V, Resistance: 1MΩ — 5GΩ.

Open/Short Circuit: 1kΩ — 50kΩ

Diode Test: Forward voltage drop: 0 — 7.5V, LED lighting time setting, Reverse leakage current.

Test Speed:

- Transient Open/short: 4ms

- Transient Open: 5us - 2ms
