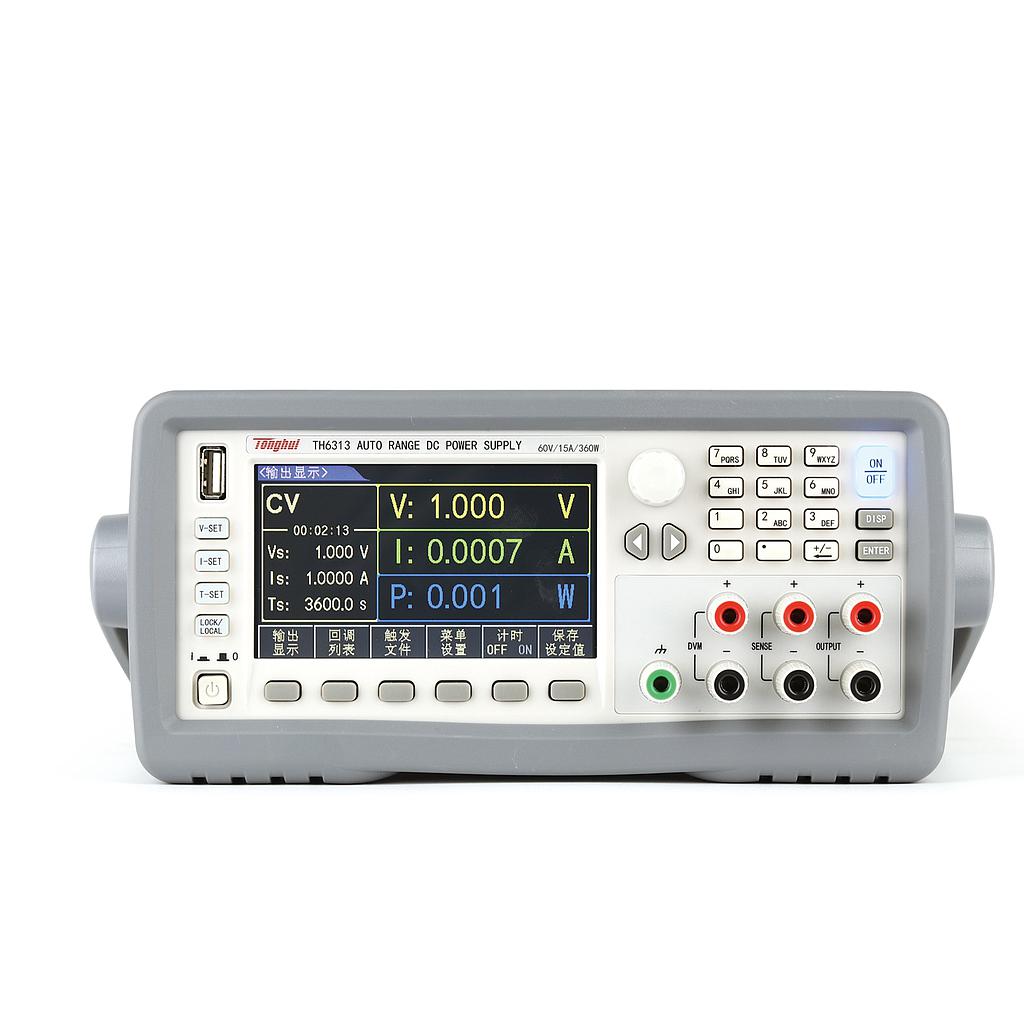

Tonghui TH6313 Wide Range Programmable Linear DC Power Supply (60V; 15A)

Rated Output:

- Voltage: 60V

- Current: 15A

- Power: 360W

Load regulation:

- Voltage: ≤0.01%+8mV

- Current: ≤0.01%+6mA

Power regulation:

- Voltage: ≤0.01%+8mV

- Current: ≤0.01%+6mA

Set Value Resolution:

- Voltage: 1mV

- Current: 1mA

Read-back resolution:

- Voltage: 1mV

- Current: 1mA

Year accuracy (25℃± 5℃):

- Programming:

Voltage: ≤0.03%+5mV

Current: ≤0.1%+15mA

- Readback

Voltage: ≤0.03%+5mV

Current: ≤0.1%+15mA

Ripple and Noise (20Hz-20MHz):

- Differential Mode Voltage: ≤15mVpp

- Differential Mode Current: ≤10mArms

Rise time (10% — 90%): ≤150mS

Fall time (90% — 10%): ≤2s

Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory

Output: Support front and rear panel output, the maximum output current of front terminal is 10A
