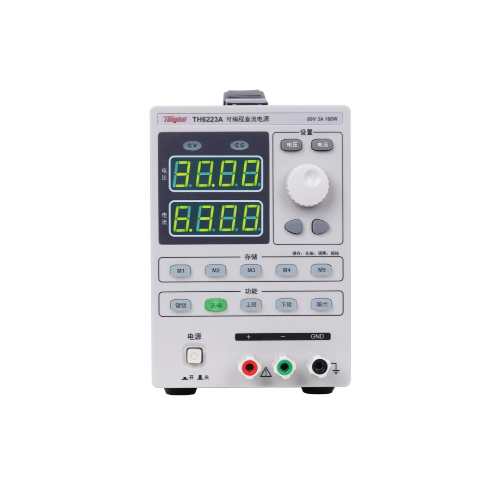

Tonghui TH6223A Linear Programmable DC Power Supply (0-60V / 0-3A / 180W)

Rated Output: 0-60V / 0-3A / 180W

Load Regulation ± (% Output + Bias): ≤0.01%+2mV / ≤0.02%+2mA

Power regulation ± (% Output + Bias): ≤0.01%+3mV / ≤0.01%+2mA

Programming resolution: 10mV / 1mA

Read-back value resolution: 10mV / 1mA

Programming Accuracy: ≤0.2%+10mV / ≤0.1%+5mA

Read-back value Accuracy: ≤0.2%+30mV / ≤0.1%+5mA

Ripple and Noise:

+ Vp-p : ≤15mV

+ Vrms : ≤2mV

+ Ip-p : ≤3mA

+ Irms : ≤1mA

Rise time (10% Load) 10%-90%: ≤100ms

Fall time (10% Load) 90%-10%: ≤80ms

Output Temperature Coefficient (Voltage/Current): ≤75ppm

Memory: 5 Groups (M1-M5). Automatic memory when power off.

Size (W×H×D) : 162mm×111mm×275mm

Weight: 6.4 kg
