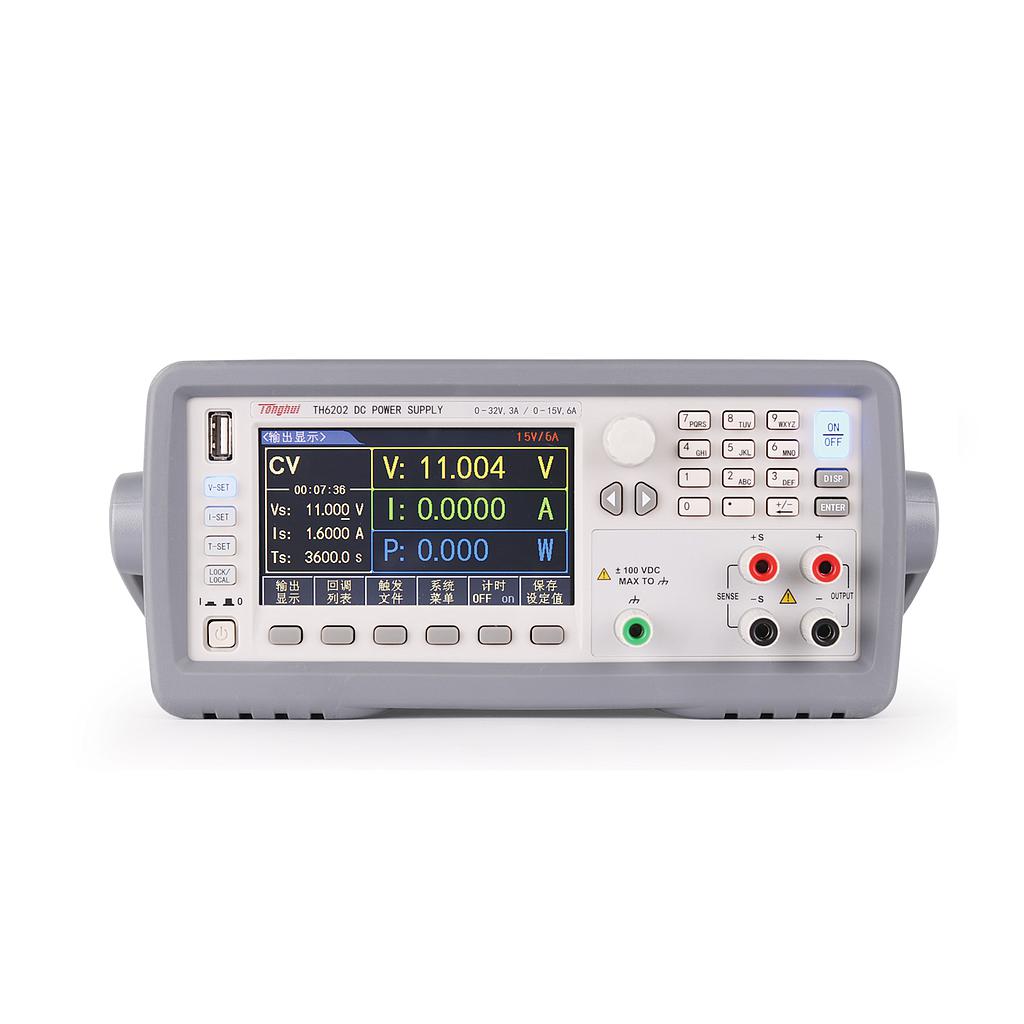

Tonghui TH6202 Double Range Programmable Linear DC Power Supply (0-32V/0-15V; 0-3A/0-6A)

Rated Output (0℃-40℃):

Channel/Range: Range1/Range2

- Voltage: 0-32V/0-15V

- Current: 0-3A/0-6A

- Power: 96W/90W

Load regulation ± (% Output + Bias):

- Voltage: ≤0.01% + 3mV

- Current: ≤0.01% + 2mA

Power regulation ± (% Output + Bias):

- Voltage: ≤0.01% + 3mV

- Current: ≤0.01% + 2mA

Programming resolution:

- Voltage: 1mV

- Current: 0.1mA

Read-back value resolution:

- Voltage: 1mV

- Current: 0.1mA

Year accuracy (25℃± 5℃) ± (% Reading + Bias):

- Programming:

Voltage: ≤0.04% + 8mV

Current: ≤0.1% + 5mA

- Readback

Voltage: ≤0.04% + 8mV

Current: ≤0.1% + 5mA

Ripple and Noise (20Hz-20MHz):

- Normal mode voltage: ≤4mVrms or 1mVp-p

- Normal mode current: <7mArms

- Common mode current: <1.5µArms

Rise time (10% — 90%): <90ms

Fall time (90% — 10%): <200ms

Timer: 0.1 ~ 99999.9 seconds

Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory
