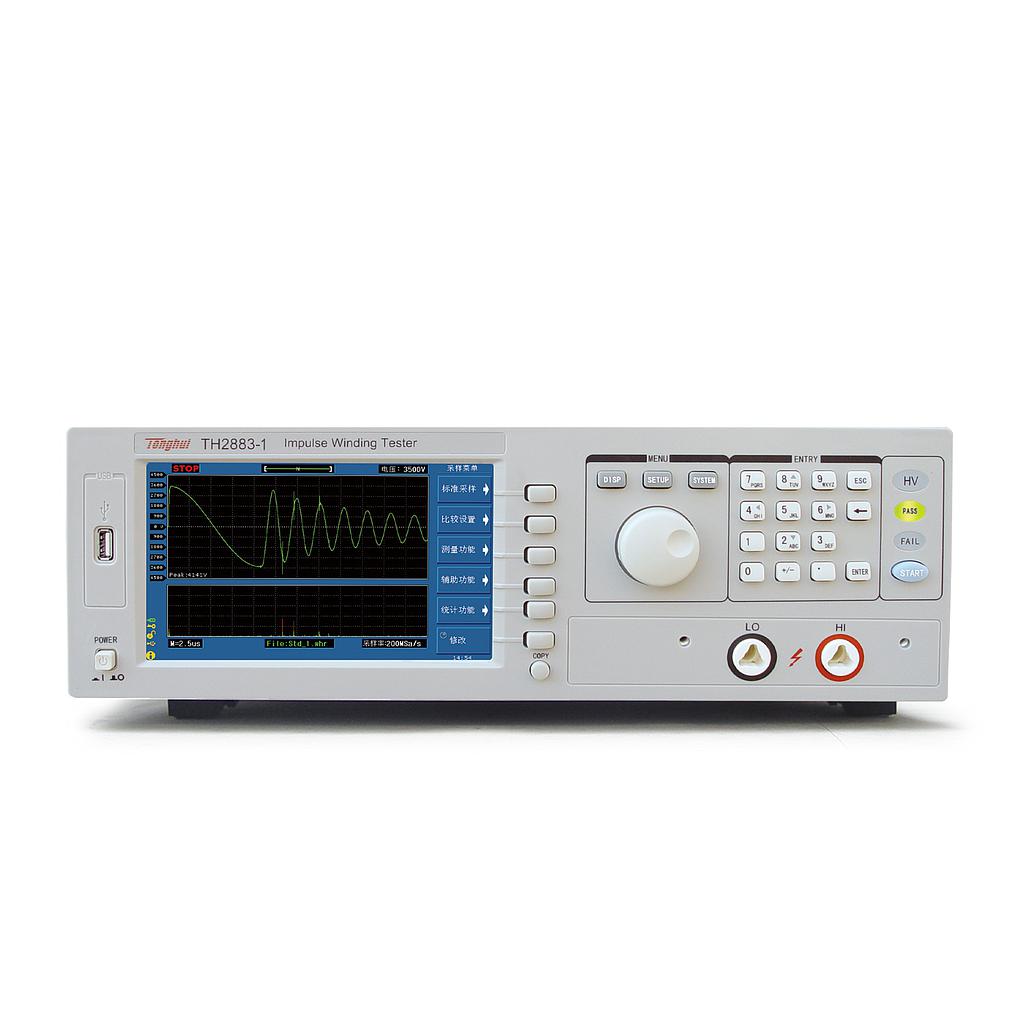

Tonghui TH2883-1 Impulse Winding Tester (30V-1200V)
ManufacturerTonghui(View more products from this manufacturer)
ModelTH2883-1
OriginChina
Warranty12 months
USD 2,328.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Impulse Voltage: 30V-1200V, 5V steps
Voltage Accuracy: ±(5% set value +5V)
Readback Accuracy: ±(5% actual value +5V)
Channels: 1
Inductance Test Range: ≥1uH
Impulse Energy: Max.: 0.02 Joule
Test Speed: 6 times/second
Pulses Applied: Max.: 32
Input Impedance: 5MΩ
Display: 800x480 dots, 65k color TFT; Waveform Display Range: 600x256
Interface: Handler, RS232C, USB Device, USB Host, LAN
Power Supply: 220V ±10% 50Hz/60Hz ±5%
Power Consumption: ≤200VA
General Conditions:
Working Environment:
- Temperature: 0℃ - 40℃
- Humidity: ≤75% R.H.
