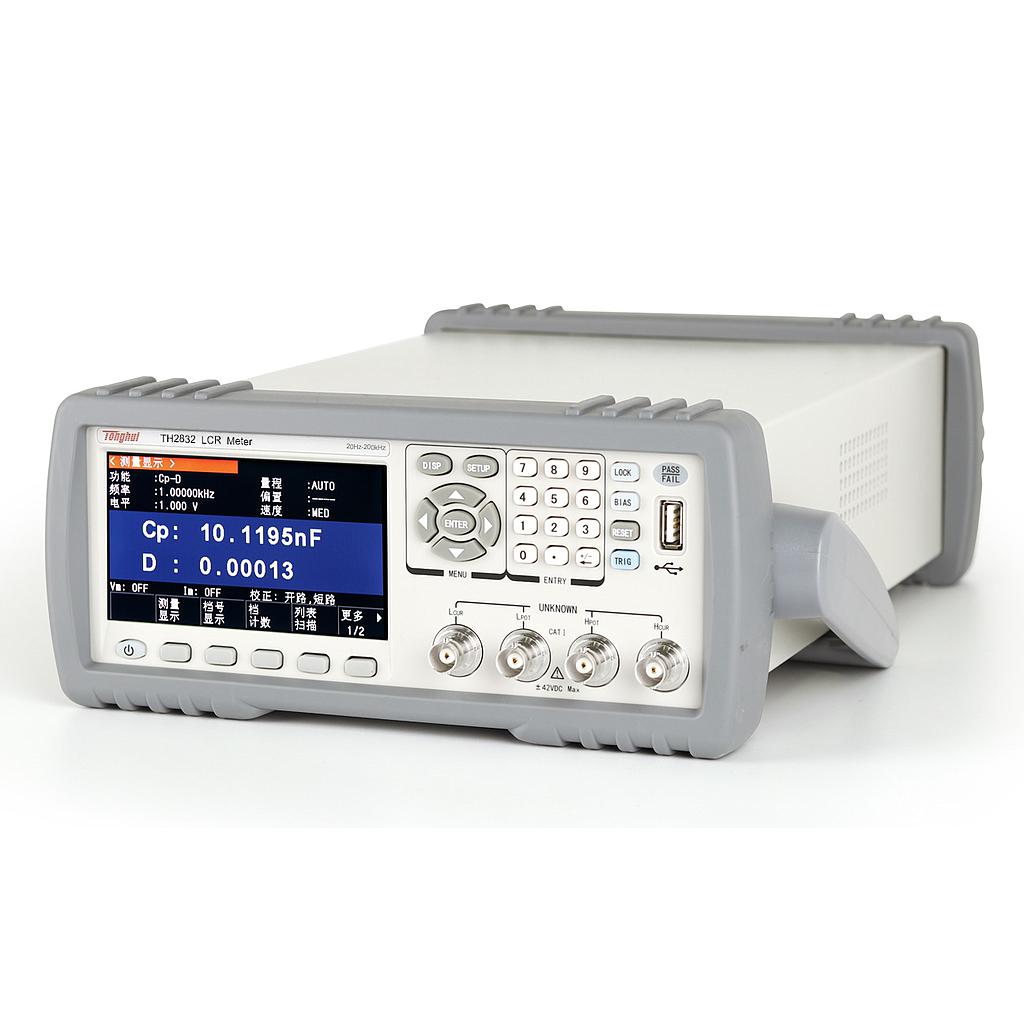

Tonghui TH2832 Compact LCR Meter (20Hz-200kHz)

Basic Measurement Accuracy:

- LCRZ: 0.05%

- DCR: 0.1%

- Calibration condition: Warm up time: ≥ 30 minutes ; Environment temperature: 23±5ºC

Signal level: 1Vrms ; Corretion: after OPEN, SHORT

Testing cable length: 0 m

Test signal frequency: 20Hz-200kHz, 15025 điểm

Signal source output impedance: Selectable 30Ω, 100Ω, ±1% at1kHz

Test parameters of LCR: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR

DCR display range: 0.00001 Ω – 99.9999 MΩ

Display range of LCR parameter:

- |Z|, R, X: 0.00001Ω — 99.9999MΩ

- |Y|, G, B: 0.00001μs — 99.9999s

- C: 0.00001pF — 9.99999F

- L: 0.00001μH — 99.9999kH

- D: 0.00001 — 9.99999

- Q: 0.00001 — 99999.9

- θ(DEG): -179.999º — 179.999º

- θ(RAD): -3.14159 — 3.14159

- Δ%: -999.999% — 999.999%

Measurement time (≥10 kHz):

- Fast: 75 meas /sec (13ms)

- Medium: 11 meas /sec (90ms)

- Slow: 2.7 meas /sec (370ms)

Rack mount (mm): 215(W) x 88(H) x 335(D)

Dimension (mm): 235(W) x 105(H) x360(D)

Net weight: 3.6 kg
