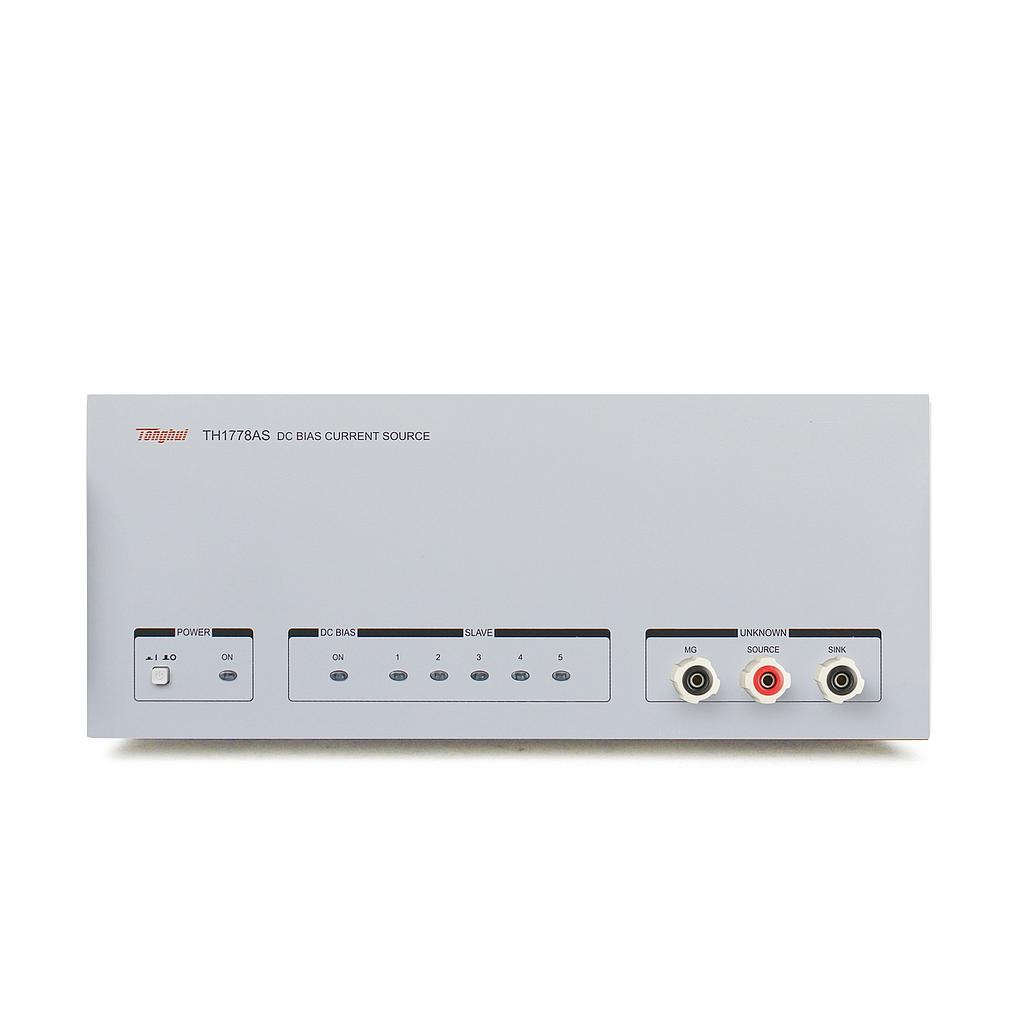

Tonghui TH1778AS DC Bias Current Source (20.0A; 0Hz-2MHz)

Display:

- Display: 480×272 16:9 24-bit truecolor TFT LCD

- Interface: Complete grafic user interface

Current step:

0mA-1.000A: 5mA

1.000A-5.000A: 25mA

5.0A-120.0A: 100mA

Supporting test frequency: 0Hz-2MHz

Sweep adjustment time:

0mA-1.000A: 4ms-3600s

1.000A-5.000A: 10ms-3600s

5.0A-120.0A: 20ms-3600s

Minimum interval of sweep adjustment step:

0mA-1.000A: 5mA

1.000A-5.000A: 25mA

5.0A-120.0A: 100mA

Range: 20.0A

Maximum output voltage: 35V (when outputting 1.000A. For different ranges, please refer to the user manual)

Interface: RS232S、laverLink

Work environment:

- Temperature: 0℃-55℃

- Humidity: ＜90%RH

Power requirement of adapter:

- Voltage: AC 220V/110V（1±10%）

- Frequency: 50Hz/60Hz（1±5%）

Power: ≤60VA

Dimension（W×H×D）: Single one: 430×185×473（mm） （not including equipment cabinet）

Weight: Single one: 18kg（not including equipment cabinet）
