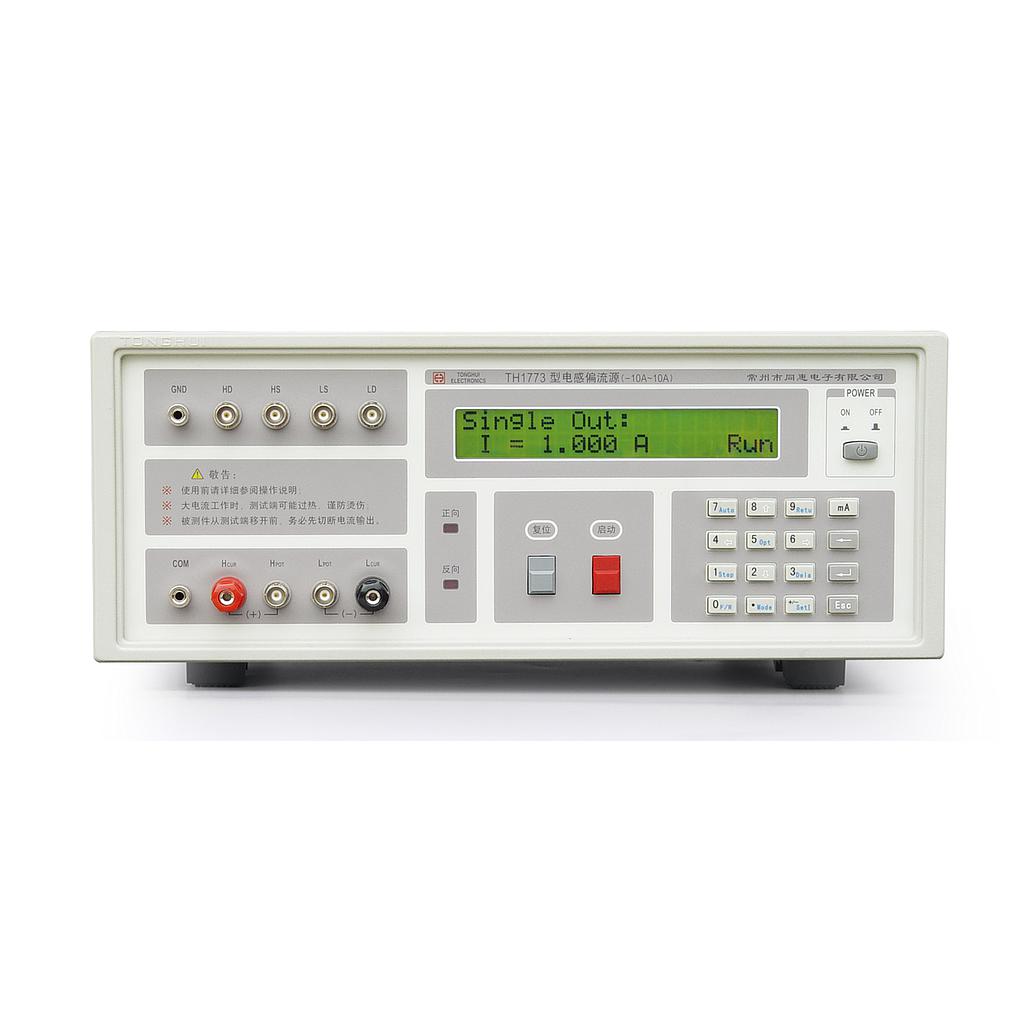

Tonghui TH1773 DC Bias Current Source (-10A ~10A; 0−8V)

Current Range: -10A − 10A

Current Resolution: 200 mA Range: 0.1 mA; 2A Range:0.001A; 10A Range:0.01A

Frequency Bandwidth: 50Hz−200kHz

Impedance Range: ωL < 2kΩ, L<8/I (H)

Current Accuracy: ±1% of reading ±3 counts

Output Voltage Range: 0−8 V

Additional Error: ≤ 1%

Current Output Mode: Single, multi and Equal interval current output

Sweep Mode: Manual, Auto (Return sweep available)

Sweep Points: 2-15 points

Delay Time: 0 to 99s

Warm-up Time: 20 minutes

Working Time: continuous work up to 24 hours

Optional Interface: RS232C (used for LCR meter control)

Operating Temperature andHumidity: 0°C−40°C, ≤90%RH

PowerRequirements:

- Voltage: 198V−242V

- Frequency: 47.5Hz−52.5Hz

Power Consumption: ≤ 200 VA

Dimensions (W×H×D): 430mmx180mmx460mm

Weight: Approx. 16.4kg

Instrument Accessories

TH26004E-1 Bias current source link cable

TH26013 DC bias test clip leads

TH2881-001 Foot switch
