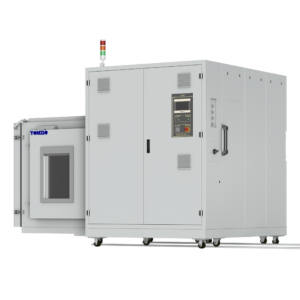

Tomilo TOH-M1400FXL E-Motor Test Chamber (150℃~-40℃; 1400mm; 2K)

Inner Size（W*D*H mm）: 1000*1000*1400

Outer Size（Excluding protrusions）W*D*Hmm: 1750*2490*2135

Temperature Range: 150℃～-40℃

Humidity range: 10%~95%

Heating rate: AVERAGE 2K

Cooling rate: AVERAGE 2K

Sample: 100kg aluminium

temperature uniformity: ≤2℃（-40℃~100℃） others≤3℃

Humidity deviation: ≤±2℃

Temperature deviation: ＞75%RH±3%RH ，≤75%RH±5%RH

temperature fluctuation: ≤±0.5℃

Appearance: RAL7035

Window Size: W360*H480

Refrigerant: R404A+R23

TEST hole: ø100*2+ø50*2

voltage: 380V

Cooling type: Water cooling

Max Power(KW): 19

Maximum Current（A）: 37

Leakage Switch（A）: 40
