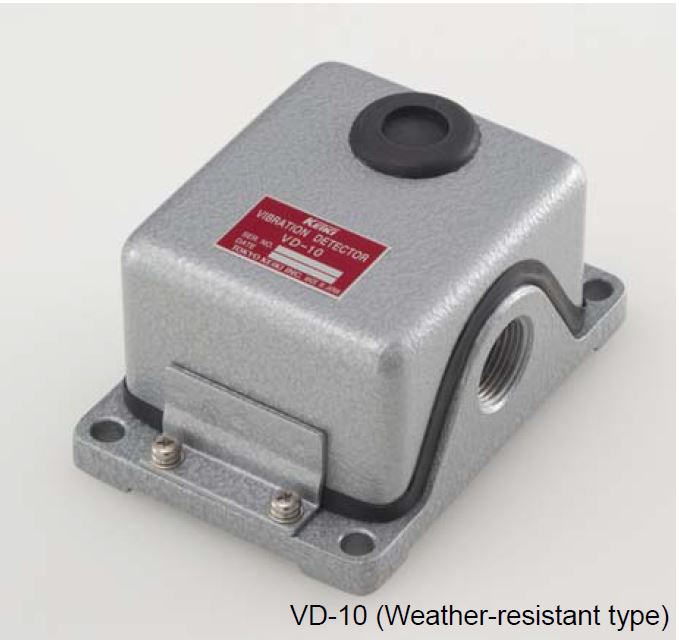

Tokyo Keiki VD10 Vibration Detector

- Range
+ Setting range : 0 ~ 44.1m/s2(0 ~ 4.5G)
+ Recommended range : 4.9 ~ 44.1m/s2 (0.5 ~ 4.5G)
+ Resolution : 0.98m/s2 (0.1G)
- Frequency range : 0 ~ 300Hz
- Accuracy: +/- 2.21m/s2
- Output Capacity
125/250V AC (3A)
48V DC (1A)
125V DC (0.5A)
250V DC (0.25A)
- Reset
+ Operation
Manual reset : Reset button operation
Remote reset: Remote reset by power supply
+ Reset power : 100 ~ 125V AC/DC (50/60Hz in AC power)
+ Coil rating
100V AC/DC (5min)
110V AC/DC (3min)
115V AC/DC (2.5min)
125V AC/DC (2min)
Rated current 0.23A
- Power consumption : 25VA
- Protection degree : IPX4 (JIS C 0920)
- Cable connection : Rc3/4 (PT3/4)
- Mass : Approx. 0.9 kg
