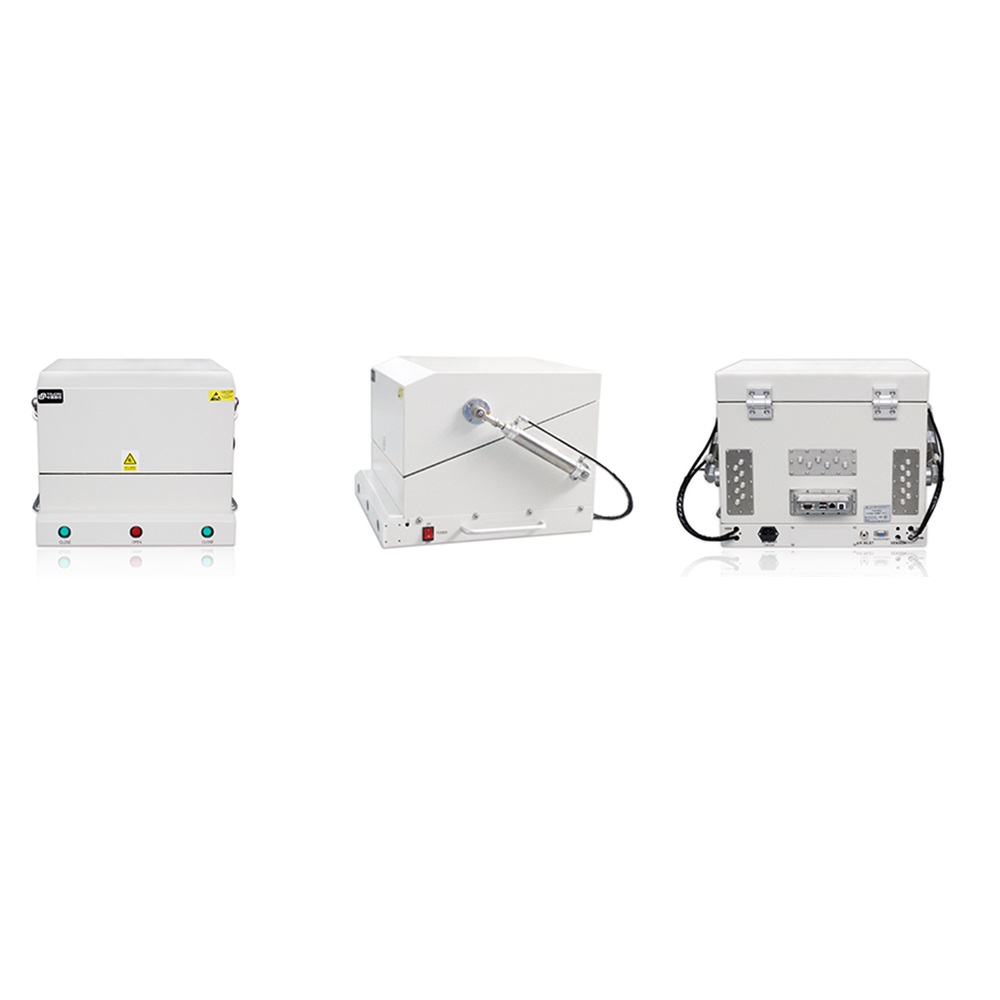

TOJOIN SD4345-C Automatic RF Shielding Box (0.8~8GHZ; 4 filters)

Working frequency (GHz): 0.8~8GHZ

Shielding effect: ≥80 dB @2.4/5.8 GHz, 75dB@7.5GHz

Interface Type: VGA, DB9, DB25, USB2.0, USB3.0, SMA, RJ45, BNC, RCA, DC, AC, etc

Numbers of filters: 4 pcs

Control method: Pneumatic (controlled by buttons)

Protection measure: Safety sensor

Operation temperature (°C): 10°C to +45°C

Storage temperature (℃): -20°C to +60°C

Humidity of storage environment: 40% to 80%, no dew

Inside Dimensions (mm): 434 (W)*440 (D)*313(H)

Dimensions (mm): 540 (W)*562 (D)*395 (H)

Weight (kg): Around 25

Datasheet
