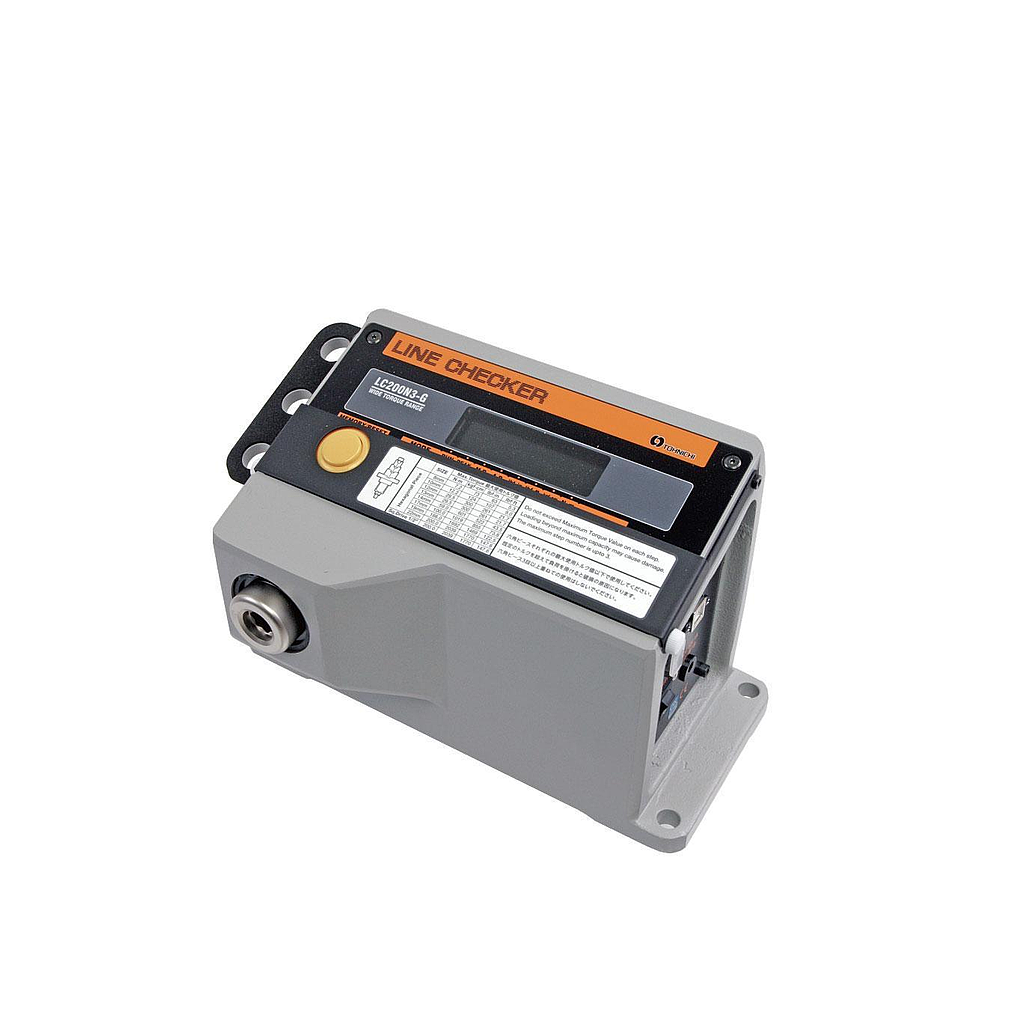

Tohnichi LC200N3-G Torque Wrench Line Checker (5-200N.m)

Accuracy: ± 1%+1digit

TORQUE RANGE [N-m]

PEAK: 5.00-9.98, 10.0-99.9, 100~200

1 DIGIT: 0.02, 0.1, 1

RUN (Min-Max): 5.00~200.00

1 DIGIT: 0.02

TORQUE RANGE [kgf.cm]

PEAK: 50.0-99.8, 100-999, 1000-2000

1 DIGIT: 0.2, 1, 10

RUN (Min-Max): 50.0~2000.0

1 DIGIT: 0.2

DISPLAY: Black mask LCD (white red blue)

DISPLAY DIGITS: 3-digit (PEAK) /5-digit (RUN)

DATA MEMORY: 1000 data (Counter, Time, Torque Date)

MEASUREMENT MODE: PEAK/RUN

ZERO ADJUSTMENT: C key, Auto zero by Power OFF/ON

UPPER/LOWER LIMIT VALUE SETTING: 10 settings

DATE OUTPUT: RS232C-compliant and USB (B-type) connectors for serial communication

MEMORY/RESET: Manual/Auto [Changeable in the range from 0.1 to 5.0 sec.]

OPERATING TEMPERATURE RANGE [°C] : 0~40 (no condensation)

POWER AC [V]: 100~240±10.% 50/60Hz

Datasheet
