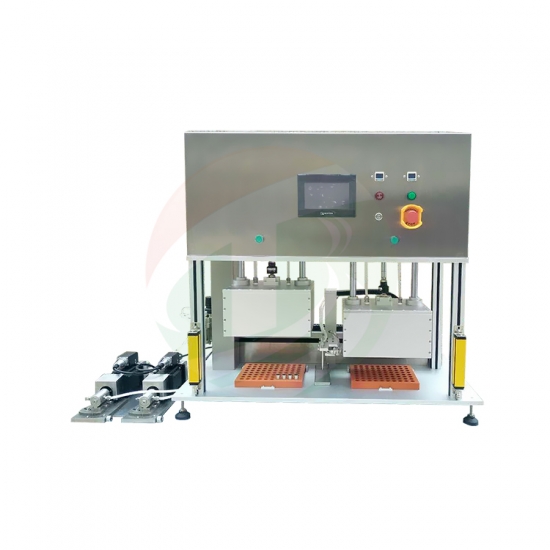

TOB TOB-ZYJ-02 Vacuum Filling Machine For Cylindrical Battery (0-7g, 0.3-0.6MPa)

Source voltage: 110V-220V AC, 50/60Hz Single Phase

Power: 1500W

Suitable battery model: 18650 / 26650 / 32650, For all kinds of cylindrical battery

Vacuum filling accuracy: ±0.02g

Vacuum filing time: 1-10times adjustable

Vacuum filling quantity: 0-7g

Vacuum degree: -0.1Mpa

Air supply: 0.3-0.6MPa

Working clamps: 18650 clamps battery tray 6 rows 8 columns

1 TOB-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.

2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.
