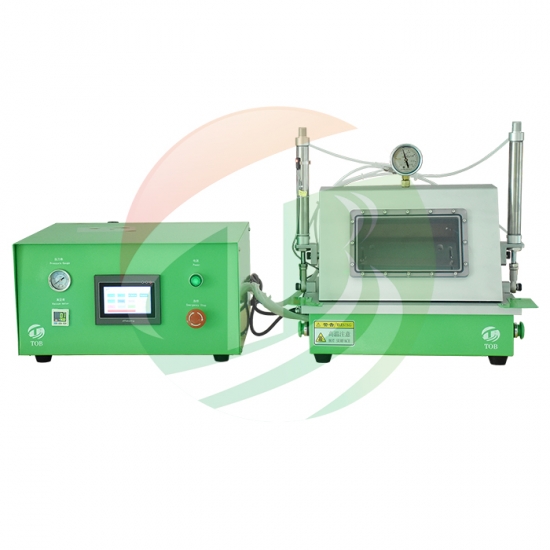

TOB TOB-YF200 Compact Vacuum Sealer For Vacuum Pre-Sealing (-95Kpa~0)

Source voltage: AC 220V/110V, 50/60HZ

Power: 600W

Vacuum degree: -95Kpa - 0

Sealing head TEM: RT-250℃, adjustable

TEM accuracy: ±1.5℃

Sealing pressure: 0-7Kg/cm2, adjustable

Sealing time: 0-99s, adjustable

Sealing Blade

Hard type (without rubber, only for Al case sealing,not suitable for sealing case with tab in between)

Sealing width: 5mm, customized

Sealing head length: 200mm

Suitable battery size (Inner size): 180*120*10mm

Air source: 0.5-0.7MPa (72.5-102psi)

Dimension(L*W*H)

Sealing Unit with Chamber Closed: 470*430*480mm

Sealing Unit with Chamber opened: 470*430*559mm

Control Unit: 420*320*220mm

Weight: About 50kg

Datasheet

Advantages

1. Sealing Head adopts copper material, good heat transfer effect,

2. With adjust plate, Can apply to different specifications battery, and the adjusting easily
