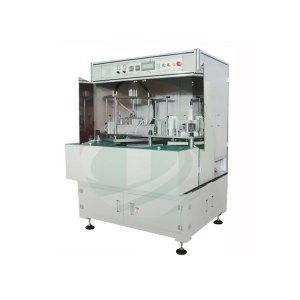

TOB TOB-VSEC Final Vacuum Sealing And Edge Cutting Machine (3000W, ≤-0.095MPa)

Source voltage: AC 380V, 50HZ

Power: 3000W

Air compression: 0.6-0.7MPa, 10L/S

Vacuum degree: ≤-0.095MPa

Size (L*W*H): 1500*1200*1700mm

Weight: About 1.2T

Inner chamber size: L≤350mm, W≤300mm, Battery thickness: 3-12mm

Sealing head length: ≤330mm

Sealing stamp width: 7mm (customized)

Sealing thickness: 0.1-0.35mm

Sealing temperature: RT-260℃ adjustable, Accuracy ±3°

Sealing time: 0-10s, adjustable

Vacuum sealing time: 0-99.99s,adjustable

Depth of parallelism

for sealing head: ±0.01mm

Cutting knife: ≤300mm

Depth of parallelism

For Cutting knife : 0.05mm

Knife life: ≥500 000 times

Output: 180-300EA/H

Machine Configure: Standard part

PLC: Mitsubishi

Man-machine interface: Mitsubishi

Tem controller: Omron

Relay: Shanghai

Vacuum gauge: SMC

Motor: DDK

Cylinder, Electromagnetic valve, Pneumatic element: AIRTAC/SMC
