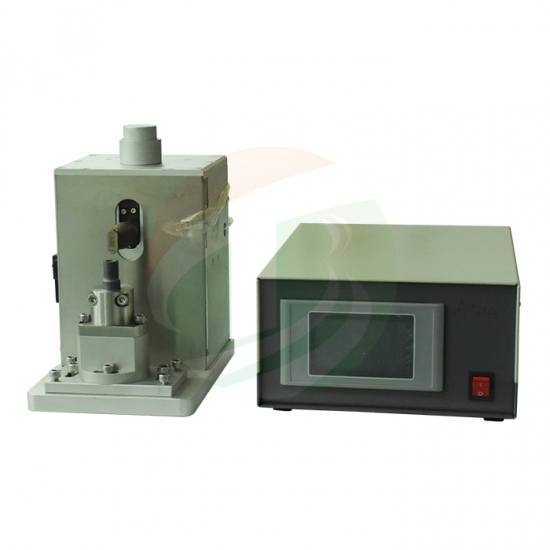

TOB TOB-VS-50A Ultrasonic Metal Welding Machine For Battery Al Tab Weld Cap (1500W, 24KHZ)
ManufacturerTOB(View more products from this manufacturer)
ModelTOB-VS-50A
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power: 1500W
Frequency: 24KHZ
Power supply: 220V/ 50Hz
Gas supply: ≥0.5MPa
Control method: CPU
Maximum stroke: 20 mm
Welding time: 0.05～9S
Main components
1. Ceramic sheet: German imported black film
2. Aluminum rod: American Aluminum Corporation
3. Welding head: high-speed steel
Welding Ability
1 Materials: Al Tab and cylinder cell cap (18650, 26650 and so on)
2 Al tab thickness: 0.08-0.15mm
3 Welding mode: according to your requirements
4 Welding area: can be customized
