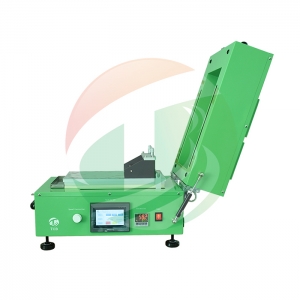

TOB TOB-VFC-150 Film Coating Machine With Dryer (0-100mm/s)

Source voltage: AC110V-240V, 50/60HZ

Power: 650W

Coating speed: 0-100mm/s, Step-less transmission Accuracy: 10mm/sec

Advantages: Supply with dry function, vacuum pump

Stroke length: 10 - 250 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck

Vacuum Chuck Dimensions: 300mm (L) * 200mm (W) * 30mm (T)

Slicker width: 0-150mm

Slicker adjustable range: 0.01-3.5mm

Heating dry system: RT-200°C, Digital temperature controller

Temperature control accuracy: ±1°C

Dimension: 500*350*320mm

Weight: About 40kg

Package size: 790*540*600mm

Package weight: 65kg

Remark

One oil-less vacuum pump is inset

Heating system : Installed on the top cover

Built in digital temperature controller with accuracy of +/-1°C

Suspension support helps open cover easily and safely.

Max. Heating Rate:10°C/min

Max. Heating Temp.:200°C

One 150mm width micrometer adjustable film applicator

Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
