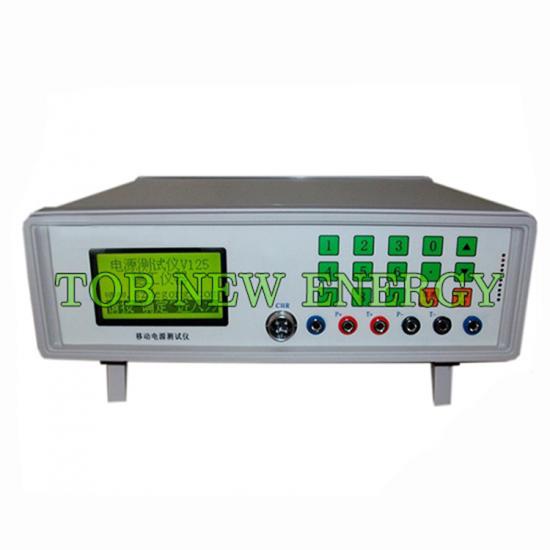

TOB TOB-V-125 Power Bank Tester (0-10V)

Open circuit voltage V1: Output voltage of the power of the no load condition. Range : 0-10V

Min load voltage V2

A voltage with a relatively small load current power supply.

Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V

Middle load voltage V3

A voltage with a relative moderate load current power supply

Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V

Max load voltage V4

A voltage with a relatively large load current power supply

Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V

Charge current

Test the charge current for the power bank on a set voltage.

Range : Current : 50-5000mA, Time : 0-9999mS, Voltage : 0-10V

Short circuit protection time

In the case of short circuit, reaction time of power bank on short circuit protection function.

Range : Time : 0-9999mS

A B Test mode: Suitable for power bank with two output.

Over discharge current: Protect current. Range : 0-10A

Dimension: 290*270*100mm

Weight: 5kg
