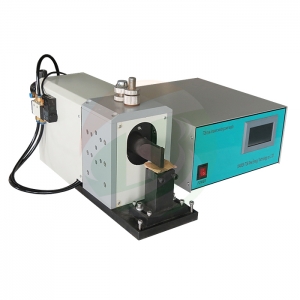

TOB TOB-USW-40KHZ Ultrasonic Spot Welding Machine For Anode Electrode (800W, 40KHZ)

Source voltage: 110V AC or 220V AC 50/60Hz

Power: 800W

Type: Ultrasonic metal welding machine

Frequency: 40KHZ

Control mode: Pneumatic, with air supply 0.5-0.7Mpa

Welding thickness: 0.09mm～0.012mm copper foil+0.1mm nickel tab

Welding size: Standard size is 3*3mm*3, can also customized according request

Working humidity: 35%-85%

Working temperature: 0℃-40℃

Structure: Adopt the solid crystal type, with functions of automatic frequency trackingWith overcurrent, overheating, mismatch alarm

Dimension

Controller: 380mm(L) * 340mm(W) *250mm(H)

Welder: 490mm(L) *170mm(W) *240mm(H)

Weight

Welder : 40kg

Controller : 10kg
