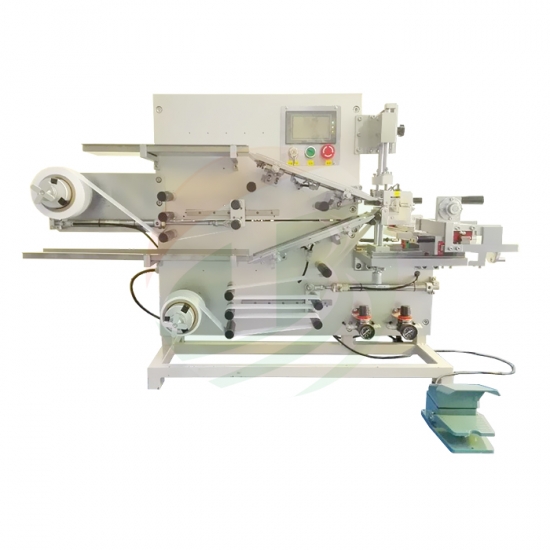

TOB TOB-SAW-LB17C Semi-Automatic Lithium Battery Winding Machine

Winding accuracy: ≤0.5mm

Control parameters setting: Touch screen operation interface, working parameters can be set

Electrode feeding method: Enter the negative electrode first and then enter the positive electrode, or the opposite process, According to the process requirements

Outer covering ending method: Separator outer covering or electrode outer covering, According to the process requirements

Winding needle

Φ3.5-φ5mm（Circular type）

38-60（Square type）

Production takt: Take a 750mm length electrode as a standard, takt time is related to the length of the electrode, the worker's operating proficiency and the quality of the electrode.

5-7ppm （Circular type）

3-5PPM （Square type）

Pass rate: ≥98%

Utilization rate: ≥95%
