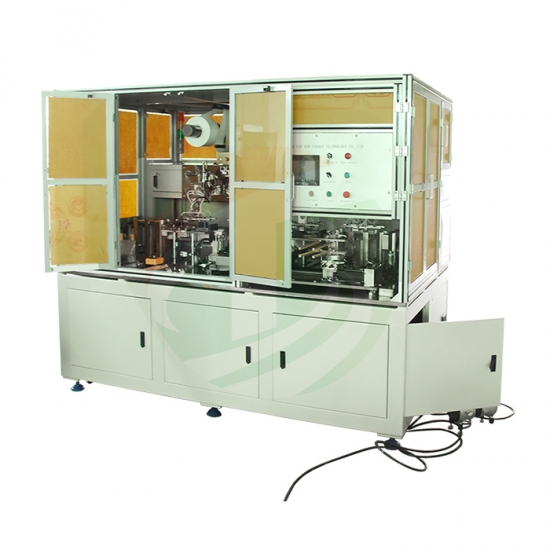

TOB TOB-S-DP-150 Semi Automatic Laminated Machine For Battery Z-Fold Assemble
ManufacturerTOB(View more products from this manufacturer)
ModelTOB-S-DP-150
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Suitable battery size
Thickness H (mm): 5-20
Width W (mm): 30-90
Length L (mm): 80-150
Tab length Q (mm): Q≤20
Tab width (mm): ≤20
Technology parameter
Stacking speed: 1.3-1.5s/pcs
Registration accuracy: ±0.5mm
Stacking quantity: Can be set
Percent of pass: ≥98%
Power: 4kw
Weight: 800kg
Dimension (L*W*H): 1250*1150*1850mm
Materials size
Electrode
Length: 80-150mm
Width: 30-90mm
Thickness: 0.07-0.25mm
Tab
Length: ≤20mm
Width: 8-20mm
Separator
Length: in roll
Width: 90-150mm
Thickness: 0.02-0.04mm
Inner diameter: φ76.2mm
Max out diameter: φ300
