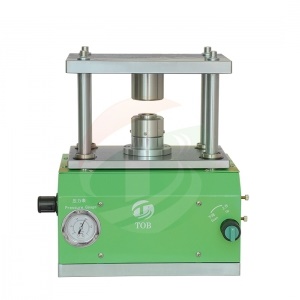

TOB TOB-QD-150 Pneumatic Coin Cell Crimper (0.7mpa)

Gas source: 0.6～0. 8 mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box)

Exhaust design:Specially designed exhaust port, can external via connected by kf40 and other devices

Gas consumption: The gas consumption of single seal is about 480 ml

Crimping pressure

Manual control valve, maximum pressure 1mpa

Recommended pressure 0.7mpa

Accuracy ± 0.5%

Crimping stroke: 30mm

Crimping die: Standard crimping die is CR20xx, with optional die sets

Disassembling die: Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.

Machine size: L290mm * W205mm * H330mm

Net Weight: 25Kg

Structural material: High strength chromium steel, the surface after environmental plating and spray treatment will never rust.

Remark: With the function of preventing short circuit of battery crimping
