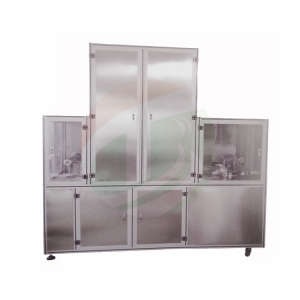

TOB TOB-PVDF-DC-P PVDF Coating Separator Machine For Battery (100-600mm)

Source voltage: AC 220V/110V, 50HZ/60HZ

Power: 23KW

Battery separator

Width: 100-600mm

Thickness: 16um-40um

Biggest bear tension: 1.0kg/cm

Max temperature: 100℃

Equipment function

1,Easy to install and replace volumes

2, Uniform machine speed 1-8M/min adjustable

3, With heating drying fucntion

Roller inner size: Φ75mm

Heating temperature: Max 100℃, Adopts steam or heat pipes for drying the battery separator

Auto unreel

Homemade tensioning device

Inflatable axle diameter φ75mm

Auto reel

Inflatable axle diameter φ75mm

explosion-proof motor

Coating speed: 0-8m/min, adjustable

Air source: 0.5-0.7MP

Struggle accuracy: ±0.2mm

Struggle parallelism: ±0.2mm

Dimension (L * W * H): 3000 * 1200 * 2500mm

Weight: About 680kg
