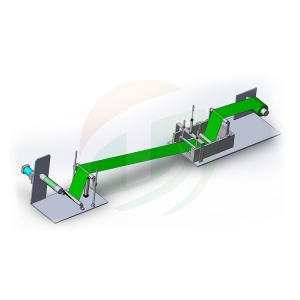

TOB TOB-PVDF-DC-LAB Battery Separator Coating Machine For Lab (100-200mm)

Source voltage: AC 220V/110V, 50HZ/60HZ

Power: 200W

Battery separator

Width: 100-200mm

Thickness: 16um-40um

Biggest bear tension: 1.0kg/cm

Max temperature: 100℃

Max roller diameter: 200mm

Equipment function

1, Easy to install and replace volumes

2, Uniform machine speed 1-3M/min adjustable

3, With Infrared heating drying fucntion

Coating box size: 600*400*180mm, with about 10L volume coating materials

Heating temperature: Max 100℃, adjustable

Heating mode: With horizontal drying ways

Auto unreel

Homemade tensioning device

Inflatable axle diameter φ75mm

Auto reel

Inflatable axle diameter φ75mm

120 W speed regulating motor

Air source: 0.6-0.8MP

Dimension (L*W*H): 740*460*800mm and 740*460*1250mm

Weight: About 200kg
