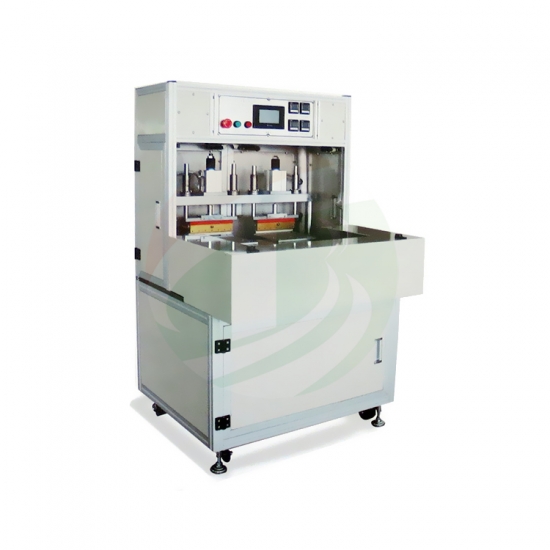

TOB TOB-MY-06-300-4 Four Station Top-Side Sealing Machine For Pouch Cell (3500W, ≥0.6MPa)

Type: Turntable type, Four work station

Source voltage: AC 220V, 50HZ

Power: 3500W

Air compression: ≥0.6MPa

Size (L*W*H): 870*870*1500mm

Suitable battery size: Top sealing≤280mm, Side sealing≤280mm

Sealing stamp width: 2-10mm

Top sealing : 4mm

Side sealing : 6mm (customized)

Sealing thickness: 0.19-0.3mm

Sealing temperature: RT-260℃ adjustable, Accuracy ±3°

Sealing time: 0-99.9s, adjustable

Feed accuracy: ±0.05mm

Output : 400-600 Times/H

Side sealing head: Length: 300mm, Width : 6mm

Top sealing head: Customized

Shelter height: 4mm, Sealing battery thickness : 2-10mm

Machine Configure: Standard part

PLC: Mitsubishi

Man-machine interface: Mitsubishi

Tem controller: Omron

Relay: Shanghai

Vacuum gauge: SMC

Proximity switch: Omron

Motor: DDK

Light curtain: SUNX

Cylinder, Pneumatic element: AIRTAC/SMC
