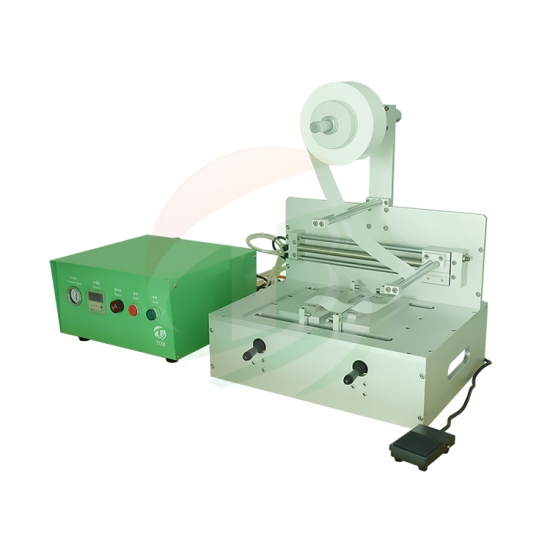

TOB TOB-M-DP-200 Battery Stacking Machine For Pouch Cell
ManufacturerTOB(View more products from this manufacturer)
ModelTOB-M-DP-200
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Voltage supply: AC 110v-220V Customized by requirements, 50HZ±10%
Power: 100W
Stacking Layer Length: L(0-200)mm, W(0-200)mm
Max separator feeding diameter: Φ250mm
Fixed travel distance: 400mm
Travel cycle: 1 - 9999 cycles
Air supply: 0.25-0.55MPa (40 - 80 psi)
Machine dimension(L*W*H): 650*400*700mm
Controller dimension(L*W*H): 200*300*380mm
Weight: 40kg
Package size for stacking machine: 660*740*430mm
Package size for control box: 470*330*520mm
