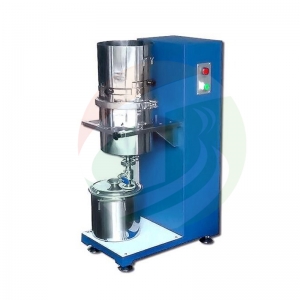

TOB TOB-LB-FT02 Small De-Ironing Filtration System For Battery Electrode Slurry (5L)

Voltage supply: 110Vac - 240Vac universal power

Power: 50W

Working Temperature: <= 40°C

Process Capacity: 5L

Magnetic Field Strength: 8000 G

Filter: 3 mesh filters: 80, 100, 120

Structure: Made of Stainless Steel 304 Containers

Slurry Viscidity: <= 15000CP

Humidity: 0-90%RH

Deironing Function: 8000-10000 GC

Overall Dimensions: 500mm(L) x 300mm(W) x 850mm(H)

Shipping Weight & Dimension: 130 lbs, 48"x40"x43"

Compliance

CE Certified

CE, TUV, UL, CSA certified in power supply

Machine is safe 24VDC input,which can be used without any safety certification

Delivery

1 set x Magnetic De-ironing Filtration System (5L) for BatteryElectrode Slurry

1 pcs x Receiving tank for Battery Electrode Slurry

1 pcs x Slurry Container

1 pcs x 80,100,120 Filter mesh

1 book x Operating manual

Datasheet
