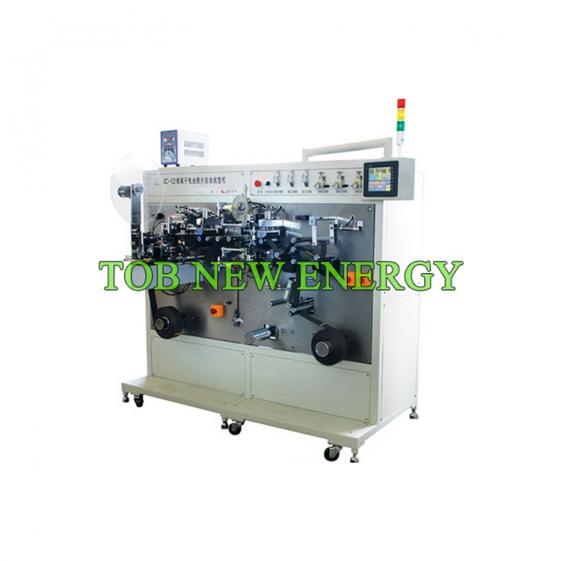

TOB TOB-JC200-4S-06A Roller Ultrasonic Welding Machine For Battery Cathode Electrode (6KW)

Source voltage: AC220V/50Hz/Single phase. Customized according country request

Power: 6KW

Compressed air: 0.4～0.8Mpa (4-8kgf/cm)

Vacuum degree: -101kp～-50kp with vacuum flow 20L/min

Operating environment

Temperature: 20～35℃

Humidity: 5～55％HR

Material

• Electrode

+ Feeding mode: Roller

+ Material length(mm): 300-1200

+ Material width(mm)

Range: 100-200

Tolerance: 0.2

+ Material thickness(um)

Range: 100-280

Tolerance: 5

+ Max outside diameter(mm): Ф450

+ Inner diameter(mm): Ф76.2

• Tab

+ Feeding mode: Roller

+ Material length(mm): 25-60

+ Material width(mm)

Range: 10

Tolerance: 0.2

+ Material thickness(um)

Range: 100-150

Tolerance: 5

+ Max outside diameter(mm): Ф400

+ Inner diameter(mm): Ф76.2

• Tape

+ Feeding mode: Roller

+ Material length(mm): 68

+ Material width(mm)

Range: 14

Tolerance: 0.2

+ Material thickness(um)

Range: 50-80

Tolerance: 5

+ Max outside diameter(mm): Ф200

+ Inner diameter(mm): Ф76.2

Welding area: Customized

Tab welding skewness: ±3°

Welding tension : ≥15N

Cutter knife life

Cathode: 500000 times with repair

Anode: 200000 times with repair

According to tab thickness

Output: ≥10PPm

Cutting burr: ≤0.007mm

Dimension (L*W*H): 2400*1300*2000mm

Weight: 1200kg
